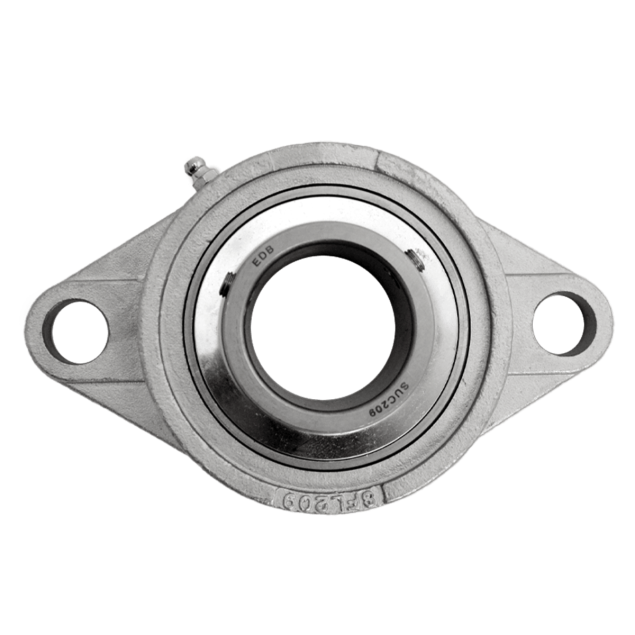

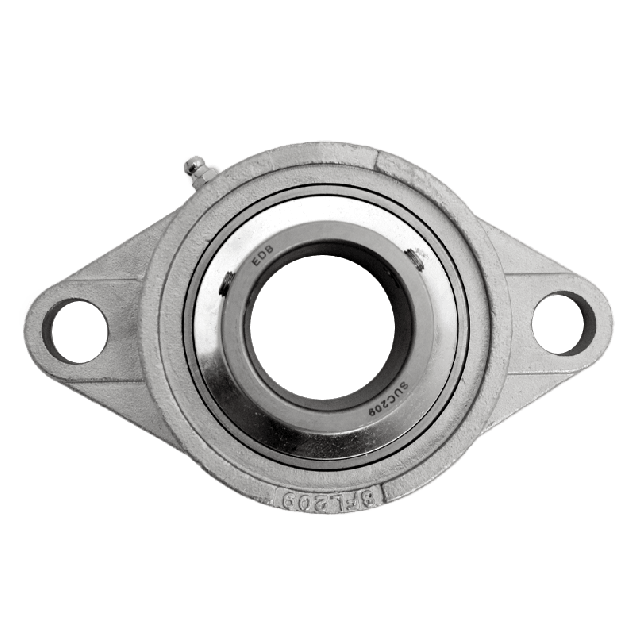

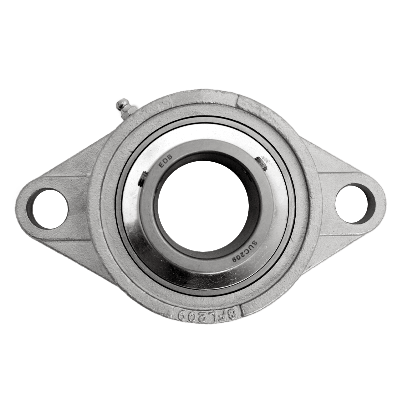

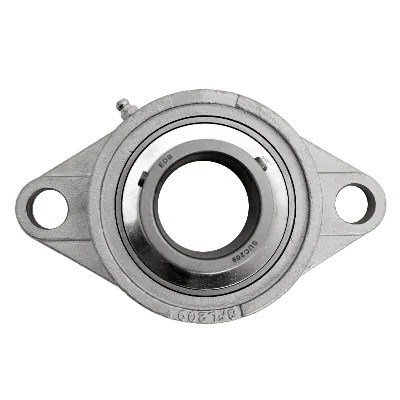

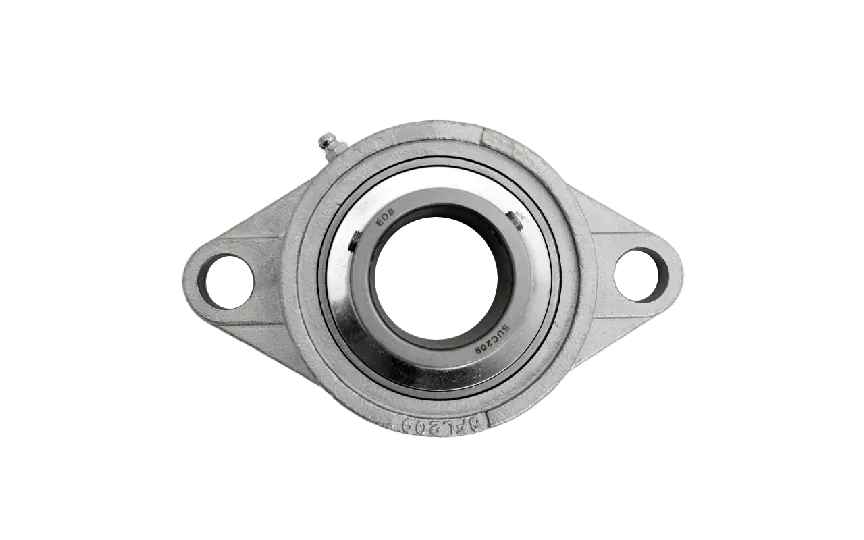

Flange bearing SFL Ø45, 2-bolt, stainless steel
SUCFL209SThe SFL 2-bolt Ø45 stainless steel flange bearing, is an solution designed for the most demanding environments, particularly in the food industry. This bearing unit boasts a hygienic design and requires minimal maintenance, making it a reliable and efficient choice
Specifications
Product description
Downloads
€91.70
Made to order
Expected shipment: 20-03-2025
More Information
Bolt size
M16
Grease nipple
Straight
Hole distance (mm)
148
Shaft size (mm)
Ø45
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
SFL
Mounting
Set screw
Housing type
2-bolt flange bearing
House material
Stainless steel
Color
Black
Description
Key features:
- Set screw locking: Provides secure mounting and stability during operation.
- Adjustable pre-lubricated stainless steel ball bearing: Allows for easy maintenance and extended lifespan.
- Re-lubrication options: Stainless steel grease-nipple or quick coupler for effortless re-lubrication.
- Wide operating temperature range: From -20°C to +120°C.
- No surface coating required: Simplifies maintenance and reduces the risk of contamination.
Materials:
- Stainless steel housing: Housing made of AISI 304 stainless steel.
- SUC stainless steel bearing: Bearing made from AISI 440C.
- Stainless steel grease nipple: Allows for easy and efficient re-lubrication, ensuring the bearing's longevity.
