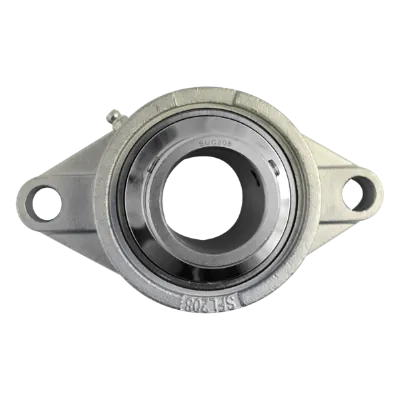

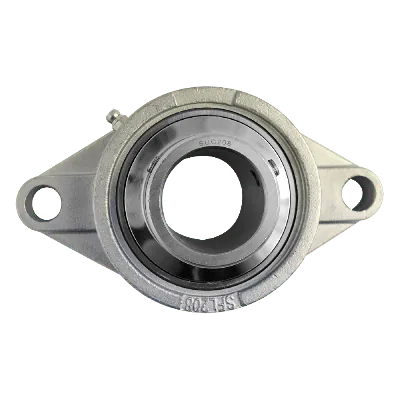

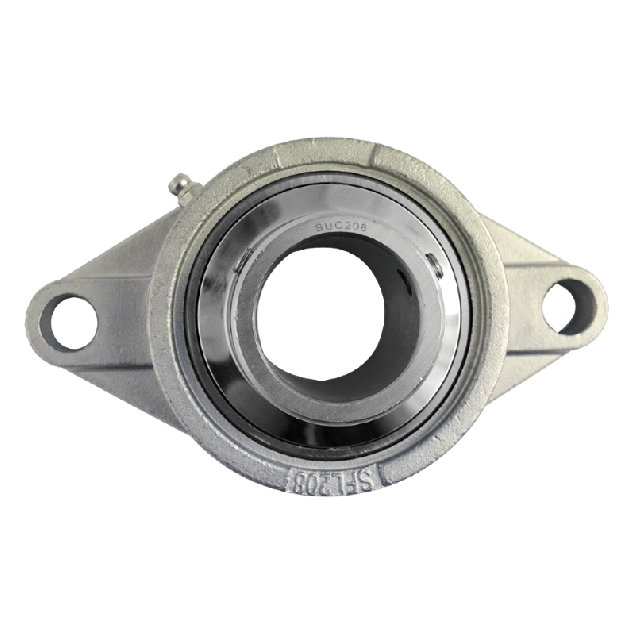

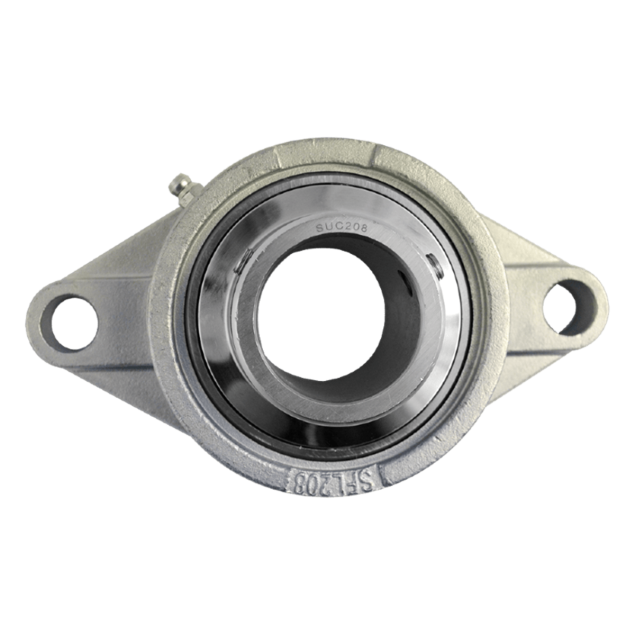

Flange bearing SFL Ø40, 2-bolt, stainless steel
SUCFL208SThe SFL 2-bolt Ø40 stainless steel flange bearing, is a reliable and robust solution designed for the food industry and other demanding environments. With its hygienic design and minimal maintenance requirements, this stainless steel bearing unit ensures optimal performance in critical applications.
Specifications
Product description
Downloads
€75.80
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
Grease nipple
Straight
Hole distance (mm)
144
Shaft size (mm)
Ø40
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
SFL
Mounting
Set screw
Housing type
2-bolt flange bearing
House material
Stainless steel
HS-Code
84832000.000000
Description
Key features:
- Hygienic design suitable for the food industry
- Easy installation with SUC stainless steel bearings and set screw locking
- Adjustable pre-lubricated stainless steel ball bearing
- Re-lubrication options: stainless steel grease-nipple or quick coupler
- Rotary shaft seal ring (TC) with extra dust-protection lip of NBR rubber
- Stainless-steel spring for enhanced durability
- Screw set lock for secure mounting
- Maintenance-free operation, except for regular greasing when needed
- Wide operating temperature range from -20°C to +120°C
- No surface coating required, ensuring longevity and cleanliness
Materials:
- Stainless steel housings made from AISI 304
- SUC stainless steel bearings crafted from AISI 440C
- Stainless steel grease nipple for seamless lubrication
