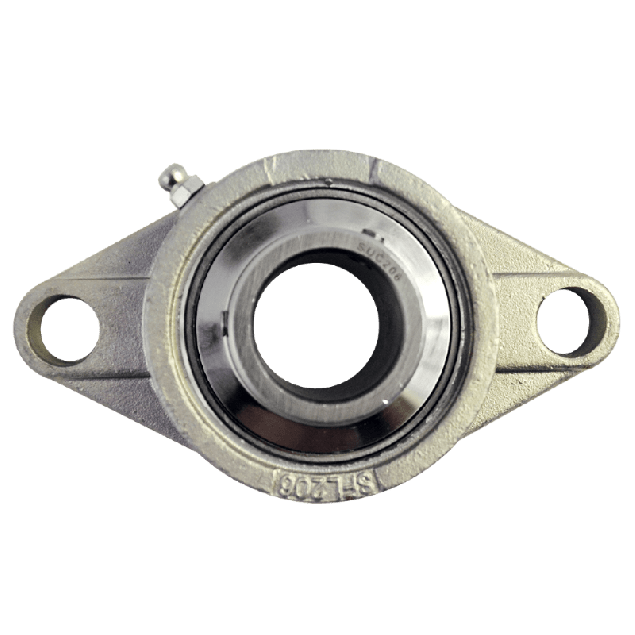

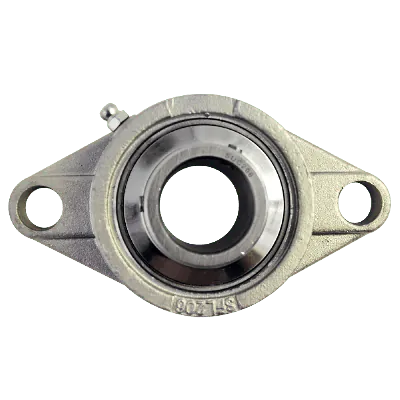

Flange bearing SFL Ø30, 2-bolt, stainless steel
SUCFL206SThe SFL 2-bolt Ø30 stainless steel flange bearing, is a high-quality bearing unit designed specifically for the food industry and other demanding environments. With its hygienic design and minimum maintenance requirements, this stainless steel bearing unit is the perfect choice for applications where cleanliness and durability are paramount.
Specifications
Product description
Downloads
€46.11
Made to order
Expected shipment: 20-01-2025
More Information
Bolt size
M14
Grease nipple
Straight
Hole distance (mm)
117
Shaft size (mm)
Ø30
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
SFL
Mounting
Set screw
Housing type
2-bolt flange bearing
House material
Stainless steel
Description
Key features:
- Screw set lock: Provides a secure and reliable fit, ensuring stability during operation.
- Maintenance-free operation: With exception to regular greasing when necessary, this bearing unit requires minimal maintenance.
- Wide temperature range: Ranging from -20°C to +120°C.
- No surface coating required: The stainless steel construction eliminates the need for surface coatings.
Materials:
- Stainless steel housing: The corrosion-resistant housing is made from AISI 304 stainless steel.
- SUC stainless steel bearing: The stainless steel bearing is made from AISI 440C.
- Stainless steel grease nipple: The included stainless steel grease nipple allows for easy lubrication.
