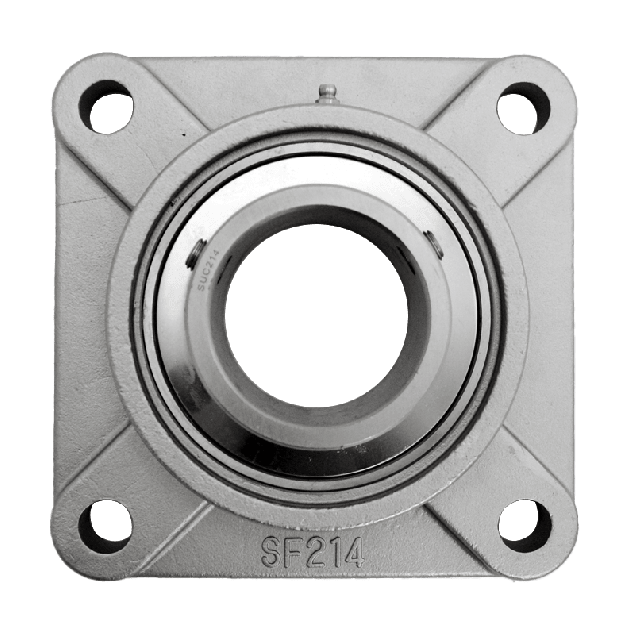

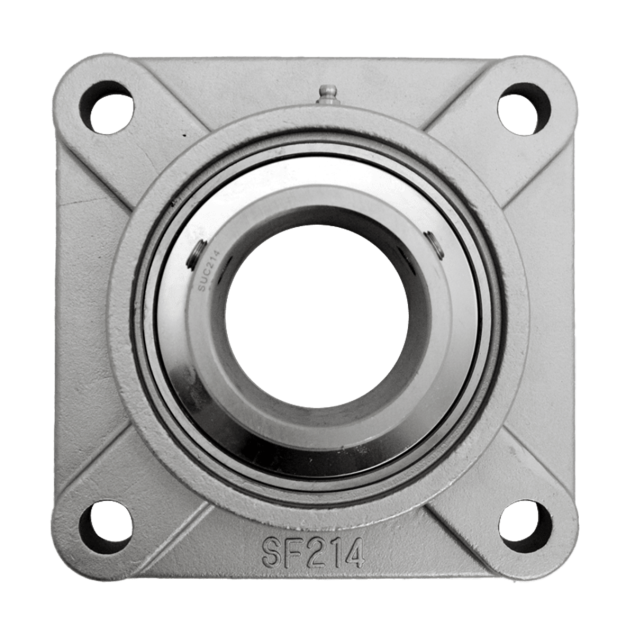

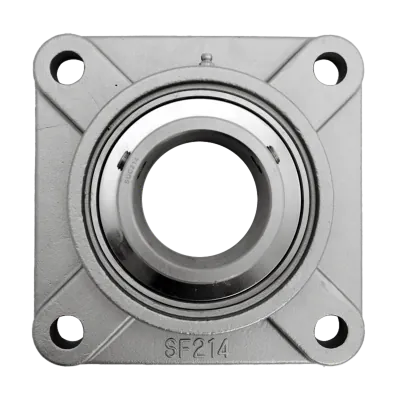

Flange bearing SF Ø70, 4-bolt, stainless steel
SUCF214SThe SF flange bearing SUCF214S Ø70 is a robust 4-bolt stainless steel bearing unit, designed for reliable operation in demanding industrial and hygienic environments.
The housing is made of AISI 440C stainless steel, offering exceptional resistance to corrosion, wear, and aggressive cleaning chemicals. The bearing insert is stainless steel, providing durability and extended service life. Equipped with NBR seals and an open cover, the unit ensures effective protection against contamination while maintaining easy inspection and maintenance access.
The bearing supports a shaft size of Ø70 mm and is secured with set screws, ensuring a firm and precise fit. The straight grease nipple allows efficient lubrication, minimizing downtime and ensuring optimal performance. This makes the SUCF214S suitable for heavy-duty and hygienic applications, particularly in the food, beverage, and pharmaceutical industries.
In stock
Expected shipment:
More Information
Description
Key features:
- Screw set lock: Ensures secure and stable mounting, preventing any unwanted movement or dislodgement.
- Maintenance-free operation: Requires minimum maintenance, except for regular greasing when needed.
- Wide operating temperature range: From -20°C to +120°C.
- No surface coating required: The stainless steel construction eliminates the need for additional surface coatings.
Materials:
- Stainless steel housings (AISI 304): The housing is made from AISI 304 stainless steel.SUC stainless steel bearings (AISI 440C): The bearings are crafted from AISI 440C stainless steel.
- Stainless steel grease nipple: The bearing unit features a stainless steel grease nipple for easy and efficient re-lubrication.
