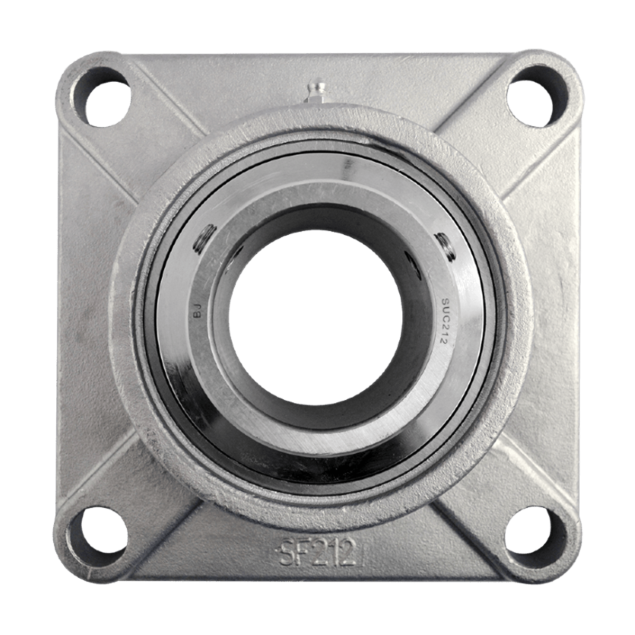

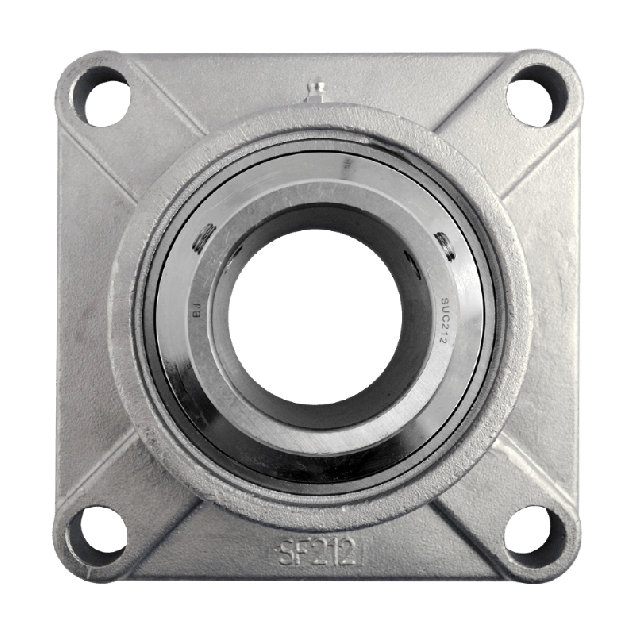

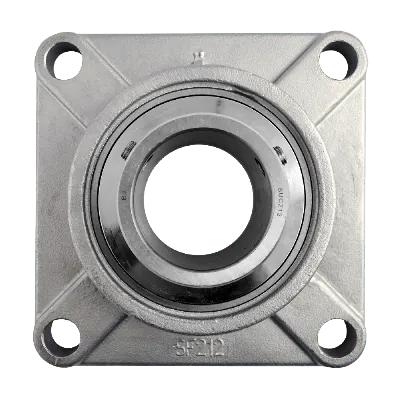

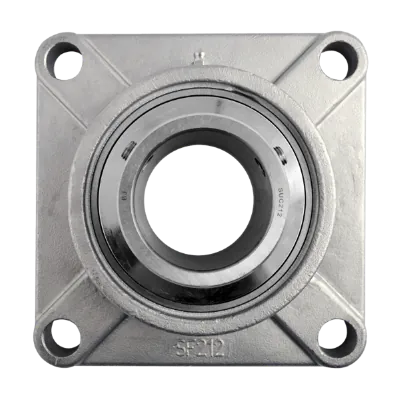

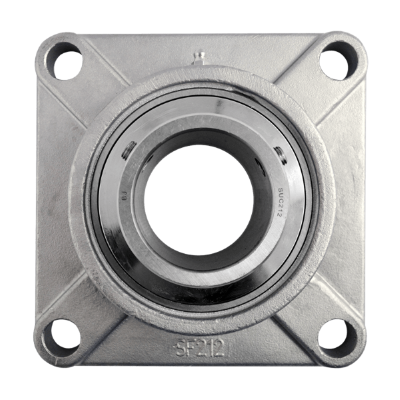

Flange bearing SF Ø60, 4-bolt, stainless steel
SUCF212SThe SF 4-bolt Ø60 stainless steel flange bearing is a high-quality bearing unit designed specifically for demanding environments such as the food industry. With its hygienic design and minimal maintenance requirements, this stainless steel bearing unit provides performance and longevity.
Specifications
Product description
Downloads
€184.85
Made to order
Expected shipment: 17-01-2025
More Information
Bolt size
M16
Grease nipple
Straight
Hole distance (mm)
143
Shaft size (mm)
Ø60
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
SF
Mounting
Set screw
Housing type
4-bolt flange bearing
House material
Stainless steel
Description
Key features:
- Hygienic design: Suitable for use in the food industry and other demanding environments where cleanliness is crucial.
- Adjustable pre-lubricated ball bearing: Allows for easy maintenance and smooth operation.
- Re-lubrication options: Stainless steel grease-nipple or quick coupler for hassle-free re-lubrication.
- Wide operating temperature range: From -20° C to +120° C.
- No surface coating required: Eliminates the need for additional surface treatment.
Materials:
- Stainless steel housings (AISI 304): Provides resistance to corrosion and ensures long-lasting performance.
- SUC stainless steel bearings (AISI 440C): Made from stainless steel for optimal strength and durability.
- Stainless steel grease nipple: Allows for convenient and reliable lubrication.
