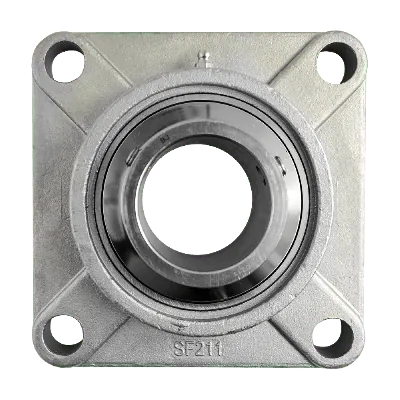

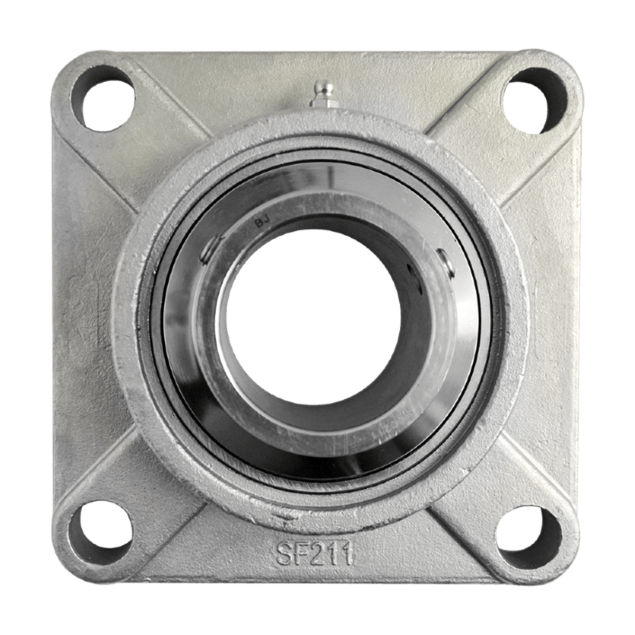

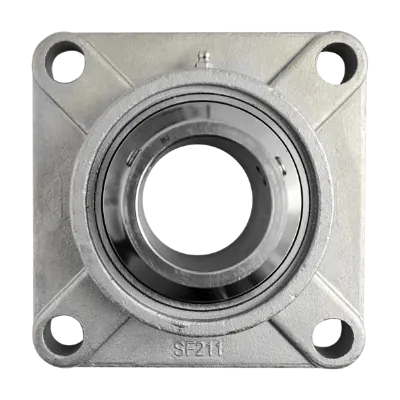

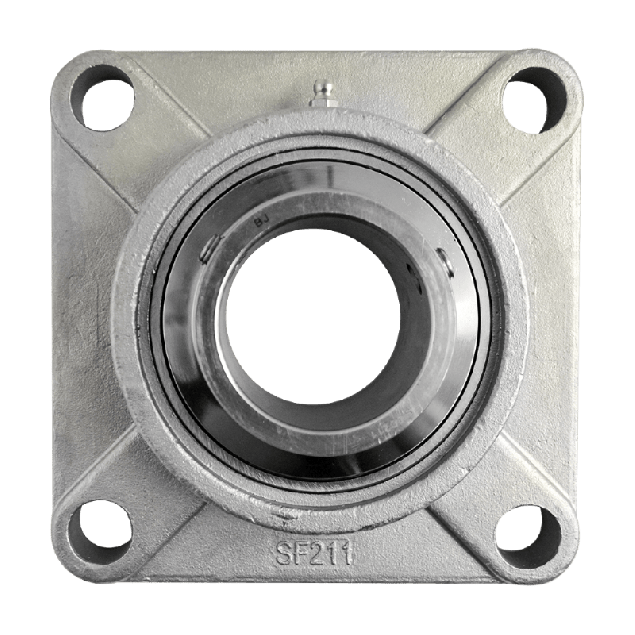

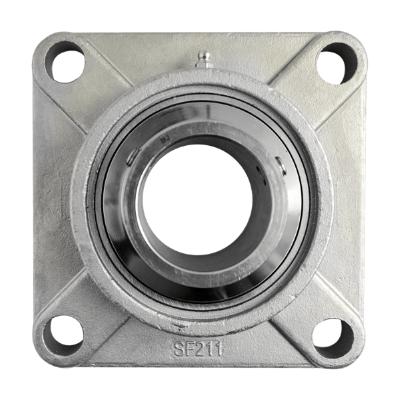

Flange bearing SF Ø55, 4-bolt, stainless steel
SUCF211SThe SF 4-bolt stainless steel flange bearing Ø55 is engineered for demanding applications such as the food and beverage industry, pharmaceutical production, and other hygienic or corrosive environments. Its robust stainless steel housing and open cover design provide durability and resistance to washdown processes, ensuring long-lasting and reliable performance.
Equipped with a nitrile rubber (NBR) seal and grease nipple for easy lubrication, this bearing minimizes maintenance downtime. The set screw mounting ensures secure shaft fixation and simple installation, while the straight grease fitting allows for precise servicing.
With a shaft diameter of Ø55 mm and hole spacing of 130 mm, this 4-bolt flange bearing offers excellent load capacity and is compatible with various industrial machinery setups.
In stock
Expected shipment:
More Information
Description
Key Features:
- Screw set lock: Provides secure and stable mounting for the bearing unit.
- Maintenance-free operation: Except for regular greasing when necessary, this bearing unit requires minimal maintenance.
- Wide operating temperature range: -20° C to +120° C.
- No surface coating required: The stainless steel housing eliminates the need for additional surface coatings.
Materials:
- Stainless steel housings (AISI 304): The robust housing material offers excellent resistance to corrosion and ensures long-lasting performance.
- SUC stainless steel bearings (AISI 440C): The stainless steel bearings provide durability and reliable operation.
- Stainless steel grease nipple: Allows easy re-lubrication.
