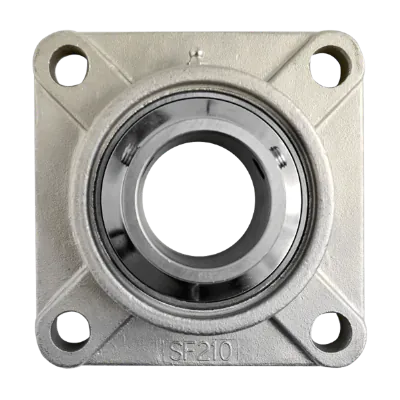

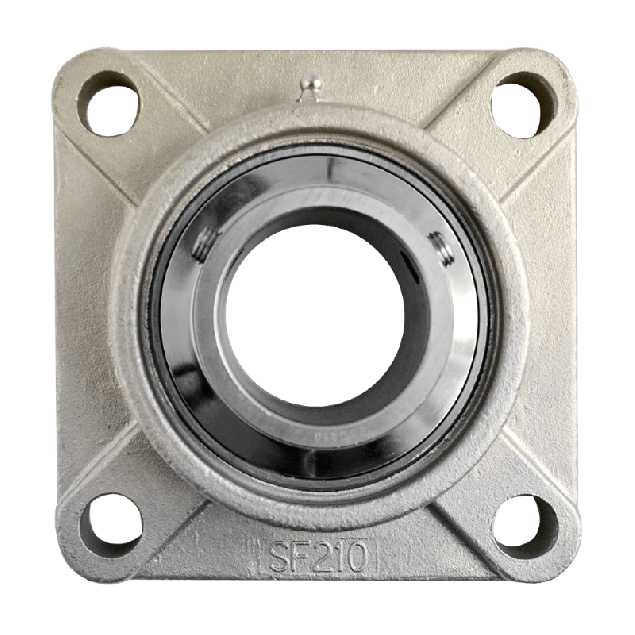

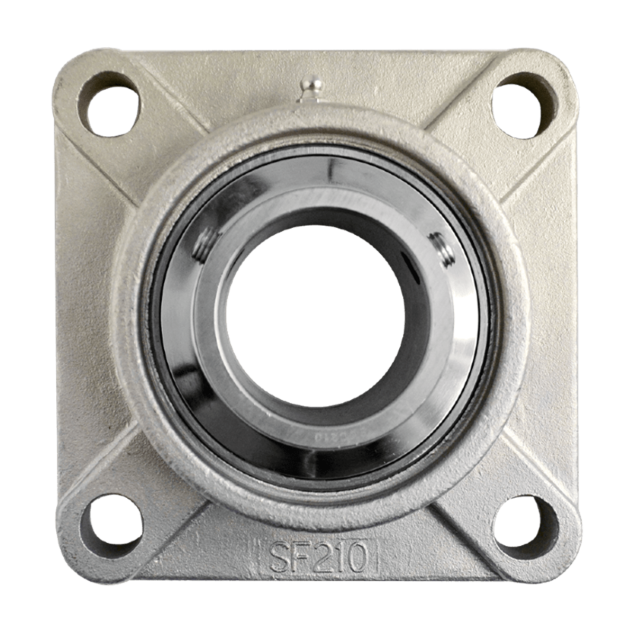

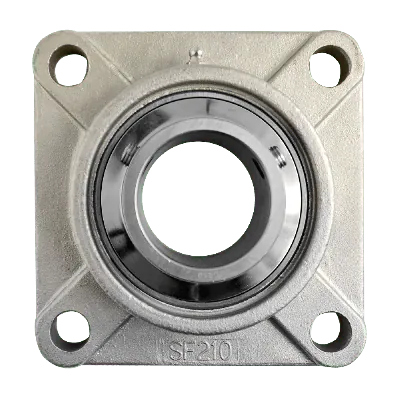

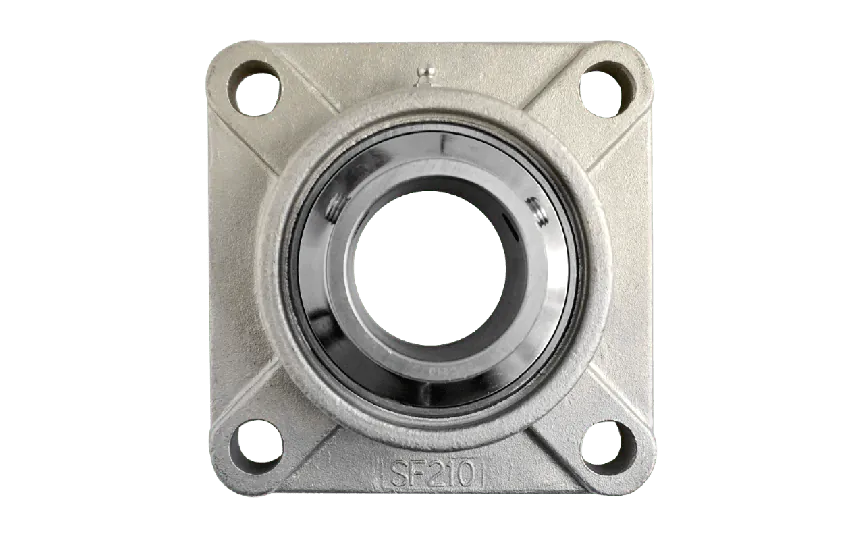

Flange bearing SF Ø50, 4-bolt, stainless steel
SUCF210SThe SF 4-bolt Ø50 stainless steel flange bearing is a high-quality solution designed for demanding environments, particularly suited for the food industry. Its hygienic design and minimal maintenance requirements make it an excellent choice for applications where cleanliness and reliability are essential.
Specifications
Product description
Downloads
€121.45
Made to order
Expected shipment: 04-04-2025
More Information
Bolt size
M14
Grease nipple
Straight
Hole distance (mm)
111
Shaft size (mm)
Ø50
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
SF
Mounting
Set screw
Housing type
4-bolt flange bearing
House material
Stainless steel
Color
Black
Description
Key features:
- Screw set lock: Provides secure and reliable fastening, ensuring stability during operation.
- Maintenance-free (except for regular greasing): Reduces downtime and maintenance costs, offering convenience and efficiency.
- Operating temperature range: From -20°C to +120°C.
- No surface coating required: Eliminates the need for additional treatments.
Materials:
- Stainless steel housings (AISI 304): Constructed with durable and corrosion-resistant AISI 304 stainless steel.
- SUC stainless steel bearings (AISI 440C): Equipped with AISI 440C stainless steel bearings.
- Stainless steel grease nipple: Allows for easy and precise lubrication.
