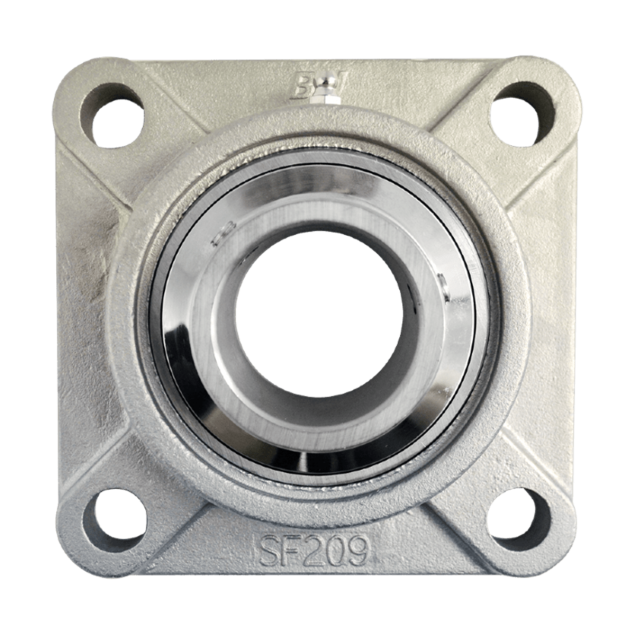

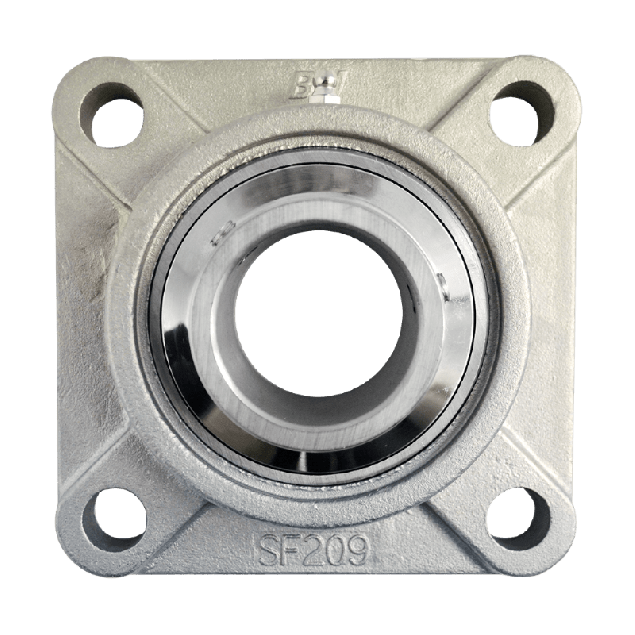

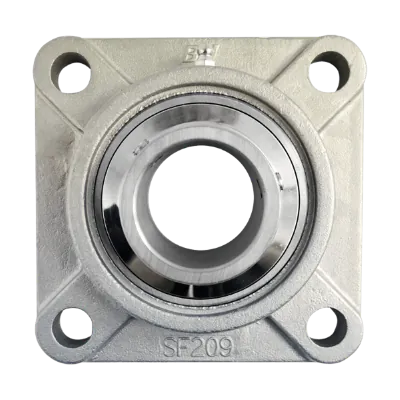

Description
Key features:
- Screw set lock for secure and stable mounting.
- Maintenance-free operation, except for regular greasing when necessary.
- Wide operating temperature range from -20°C to +120°C.
- No surface coating required, eliminating the need for additional treatments.
Materials:
- Stainless steel housings (AISI 304) ensure durability and resistance to corrosion.
- SUC stainless steel bearings (AISI 440C) provide load-bearing capacity and extended lifespan.
- Stainless steel grease nipple enables easy lubrication and maintenance.
Specifications
Grease nipple
Straight
Hole distance (mm)
105
Shaft size (mm)
Ø45
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
SF
Mounting
Set screw
Housing type
4-bolt flange bearing
House material
Stainless steel
Downloads
Foreign trade
HS-Code
84832000
ERP net weight (Kg)
2.25
Country of origin
CHN
