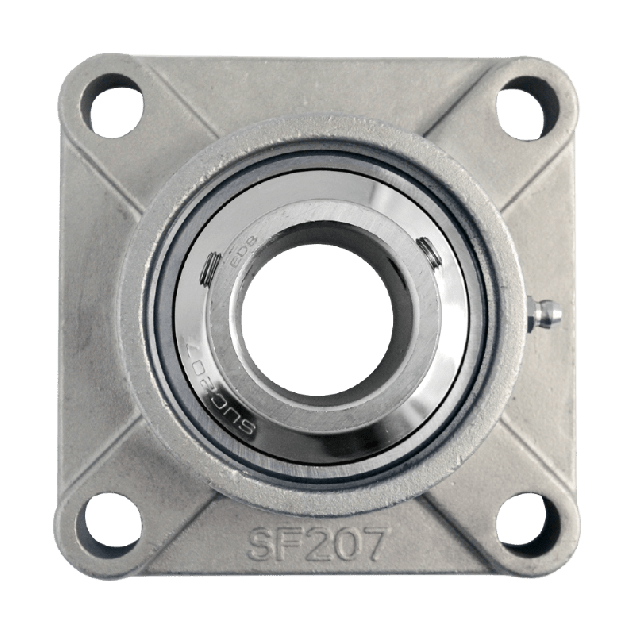

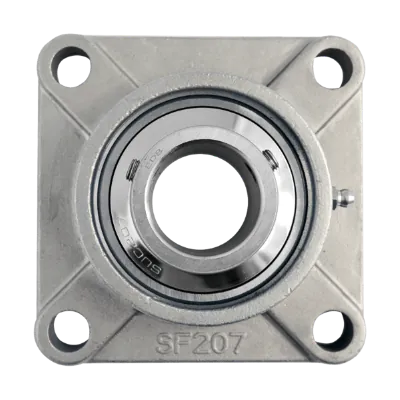

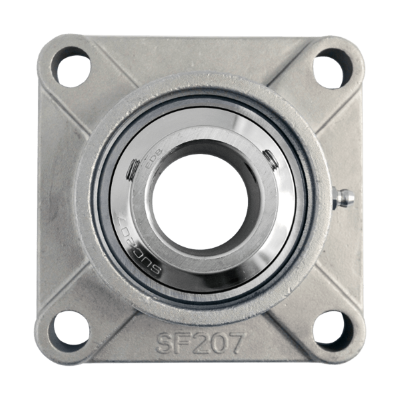

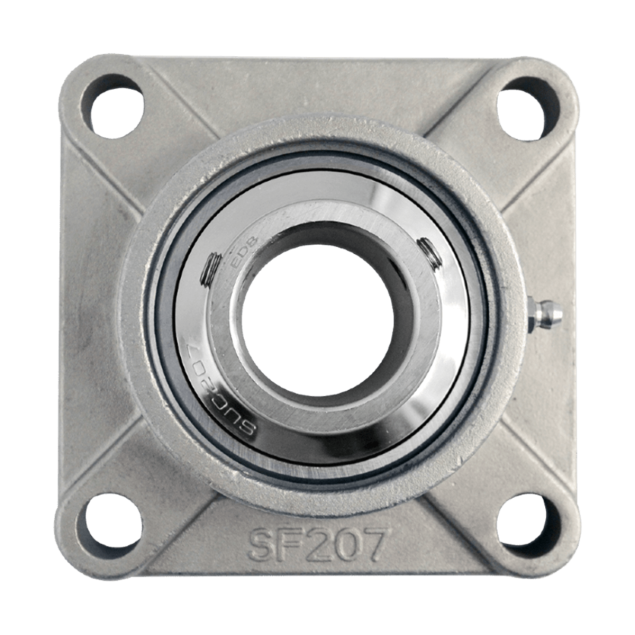

Description
Key features:
- Screw set lock: Provides secure and reliable mounting, ensuring stability and reducing the risk of dislocation.
- Maintenance-free operation: Requires minimal maintenance, with regular greasing being the only necessary upkeep.
- Wide operating temperature range: -20°C to +120°C.
- No surface coating required: Eliminates the need for additional treatments.
Materials:
- Stainless steel housings (AISI 304): Constructed with stainless steel.
- SUC stainless steel bearings (AISI 440C): Equipped with stainless steel bearings.
- Stainless steel grease nipple: Features a stainless steel grease-nipple for easy re-lubrication.
Specifications
Grease nipple
Straight
Hole distance (mm)
92
Shaft size (mm)
Ø35
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
SF
Mounting
Set screw
Housing type
4-bolt flange bearing
House material
Stainless steel
Downloads
Foreign trade
HS-Code
84832000
ERP net weight (Kg)
1.52
Country of origin
CHN
