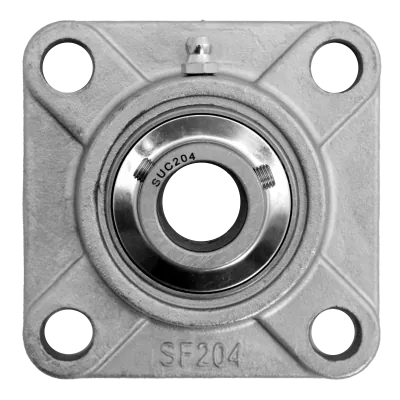

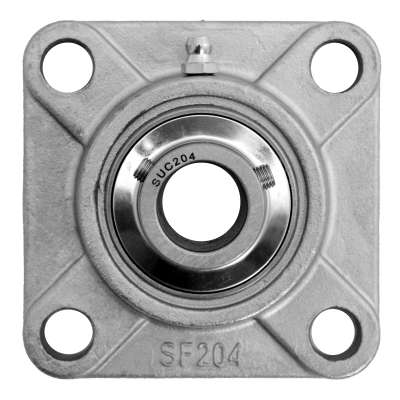

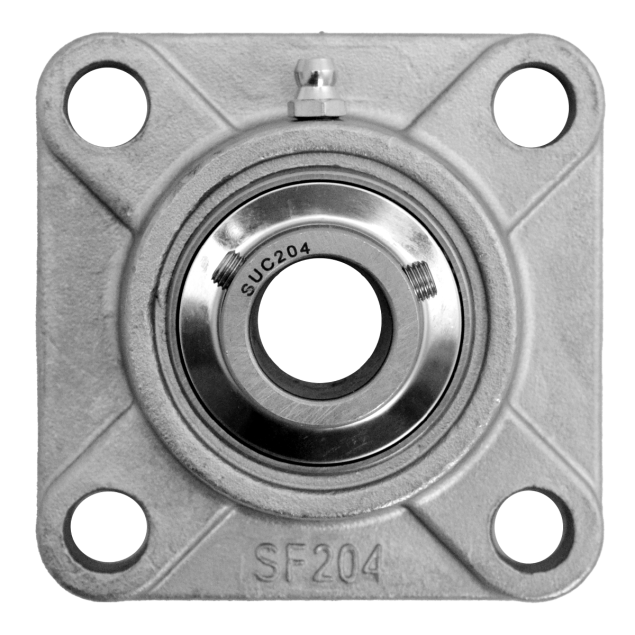

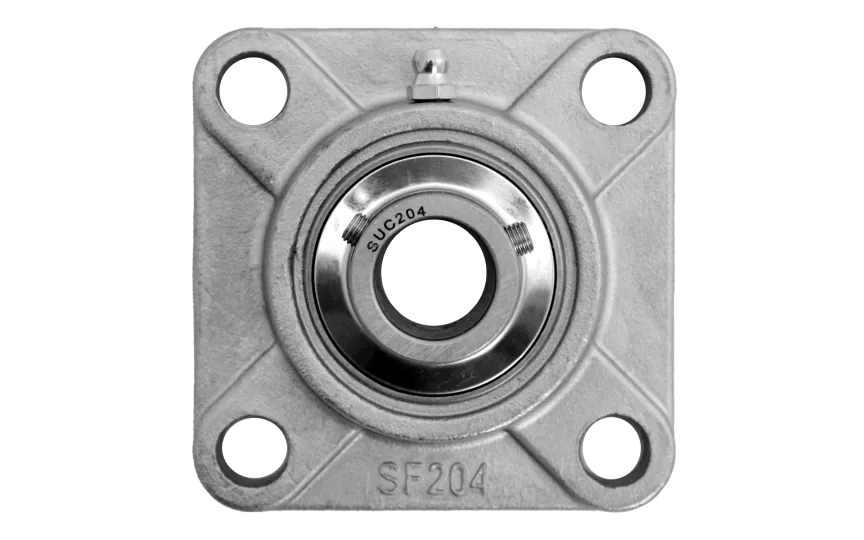

Flange bearing SF Ø20, 4-bolt, stainless steel
SUCF204SThe SF 4-bolt Ø20 stainless steel flange bearing, is a solution for the food industry and other demanding environments where hygiene and low maintenance are crucial. With its robust construction and high-quality materials, this flange bearing ensures reliable performance in a wide range of applications.
Specifications
Product description
Downloads
€30.10
In stock
Expected shipment:
Loading...
More Information
Grease nipple
Straight
Hole distance (mm)
64
Shaft size (mm)
Ø20
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
SF
Mounting
Set screw
Housing type
4-bolt flange bearing
House material
Stainless steel
HS-Code
84832000.000000
Description
Key features:
- Hygienic design: Perfectly suited for the food industry and other demanding environments with strict cleanliness requirements.
- Adjustable pre-lubricated ball bearing: The bearing unit comes pre-lubricated with stainless steel balls.
- Re-lubrication options: Can be re-lubricated using a stainless steel grease-nipple or a quick coupler.
- Temperature resistant: -20°C to +120°C.
- Maintenance-free: Except for regular greasing when required, this bearing unit requires minimal maintenance.
- Surface coating not required: The stainless steel construction eliminates the need for surface coatings.
Materials:
- Stainless steel housings (AISI 304): The housing is made of stainless steel.
- SUC stainless steel bearings (AISI 440C): The bearings feature AISI 440C stainless steel construction.
- Stainless steel grease nipple: Equipped with a stainless steel grease nipple for convenient lubrication.
