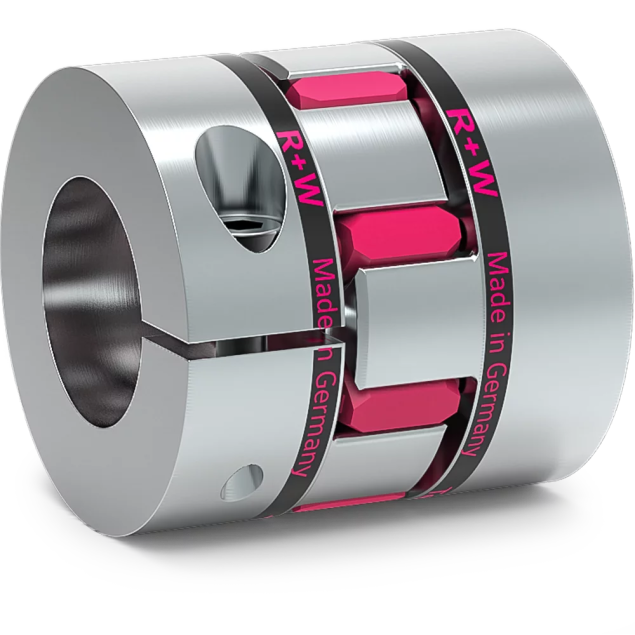

Key features:

• Short overall length: The compact design of the EKL Size 60 coupling ensures optimal space utilization, making it suitable for installations with limited space constraints.
• Easy mounting: The coupling's two concentrically machined hubs with curved jaws and clamping screws on each side enable quick and hassle-free installation, saving valuable time during setup.
• Vibration damping: The elastomer insert of the coupling effectively absorbs and dampens vibrations, reducing stress on connected equipment and enhancing overall system stability.

Specifications:

• Elastomer type: Type B elastomer
• Shore hardness: 64 Sh D
• Temperature range: -30 °C to +120 °C

Design and materials:

• Hubs: The coupling hubs are precision-machined from high-quality steel, ensuring durability and strength to withstand heavy loads and challenging operating conditions.
• Elastomer insert: The elastomer insert is made from wear-resistant and thermally stable TPU (Thermoplastic Polyurethane), providing excellent performance and longevity even in demanding environments.

Bore Specifications:

• Bore min: Ø35mm H7
• Bore max: Ø80mm H7
