Key features:

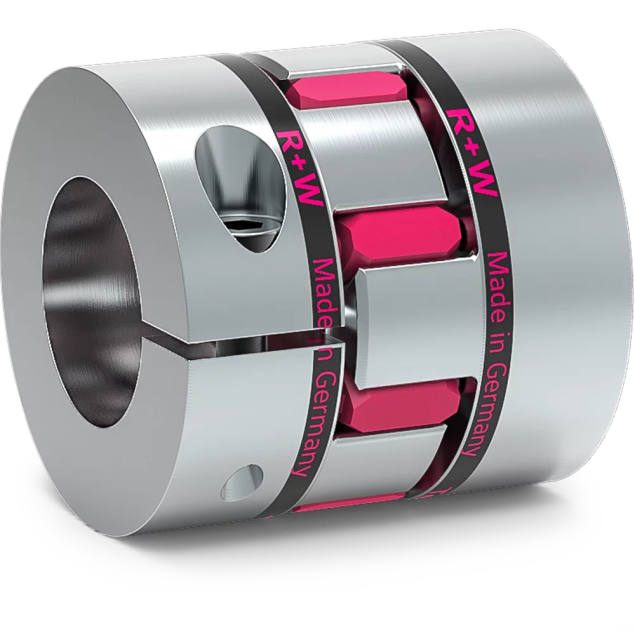

• Short overall length: The compact design of the EKL size 60 coupling ensures space-saving installation and compatibility with tight spaces.
• Easy mounting: The coupling's design allows for quick and hassle-free installation, minimizing downtime and improving productivity.
• Vibration damping: The elastomer insert absorbs and dampens vibrations, reducing noise levels and extending the lifespan of connected equipment.

Specifications:

• Type: B elastomer
• Shore hardness: 64 Sh D
• Temperature range: -30 °C to +120 °C

Design and materials:

• Two concentrically machined hubs: The coupling features two precision-machined hubs with curved jaws.
• Clamping hub with screws: The coupling is equipped with one clamping screw on each side.
• Aluminum hubs: The hubs are constructed from aluminum.
• TPU elastomer insert: The elastomer insert is made from thermally stable TPU material.

Bore specifications:

• Bore D1: Ø20mm H7
• Bore D2: Ø24mm H7
