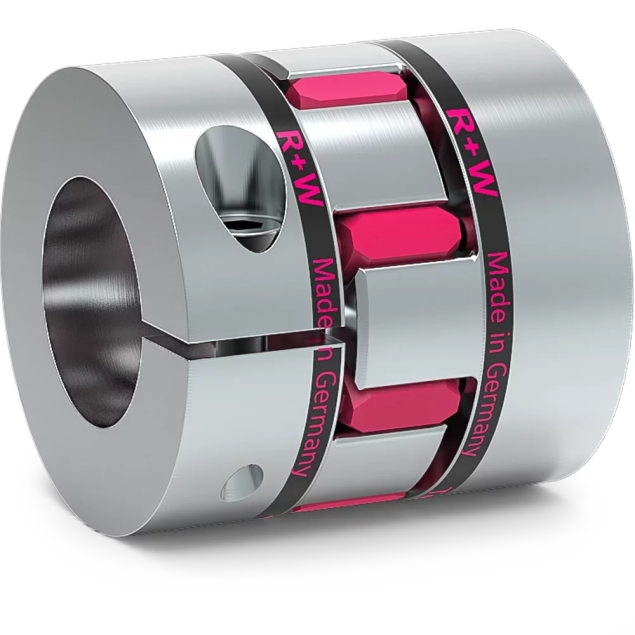

R+W EKL 60 B 20 20 elastomer coupling, aluminium and TPU
HV3020010229The EKL size 60 elastomer coupling with clamping hub is a high-quality coupling designed for various industrial applications. With its features and robust construction, this coupling ensures reliable and efficient power transmission.
Made to order
Expected shipment: 14-03-2025
More Information
Description

Key features:
- Short overall length: The compact design of the EKL size 60 coupling minimizes space requirements, making it suitable for installations with limited space.
- Easy mounting: The coupling features a simple and user-friendly mounting mechanism, allowing for quick and hassle-free installation.
- Vibration damping: With its elastomer insert, the coupling effectively dampens vibrations and reducing noise.
Specifications:
- Type: B elastomer
- Shore hardness:64 Sh D
- Temperature range: -30 °C to +120 °C
Design and materials:
- Concentrically machined hubs: The coupling features two hubs with curved jaws that are machined concentrically.
- Clamping hub: Each hub is equipped with a clamping screw.
- Aluminum hubs: The hubs are constructed from aluminum.
- TPU Elastomer Insert: The elastomer insert is made from thermally stable TPU.
Bore specifications:
- Bore D1: Ø20mm H7
- Bore D2: Ø20mm H7
