Key features:

• Short overall length: Allows for compact installations, saving valuable space.
• Easy mounting: The design of the coupling simplifies the installation process, ensuring quick and hassle-free setup.
• Vibration damping: The elastomer insert effectively absorbs vibrations, minimizing the risk of damage to connected equipment and ensuring smooth operation.

Specifications:

• Type of elastomer: Type B
• Shore hardness: 64 Sh D
• Temperature range: -30 °C to +120 °C

Design and materials:

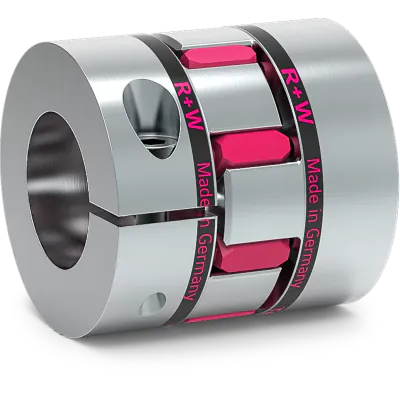

• Two concentrically machined hubs with curved jaws: Ensures a secure and precise connection between the shafts.
• Clamping screw on each side: Provides reliable clamping force, maintaining the coupling's integrity during operation.
• Hubs made from aluminum: Offers strength and durability.
• Elastomer insert made from wear-resistant thermally stable TPU: Provides long-lasting performance and maintains its properties in demanding conditions.

Bore specifications:

• Bore D1: Ø14mm H7 with keyway
• Bore D2: Ø24mm H7 with keyway
