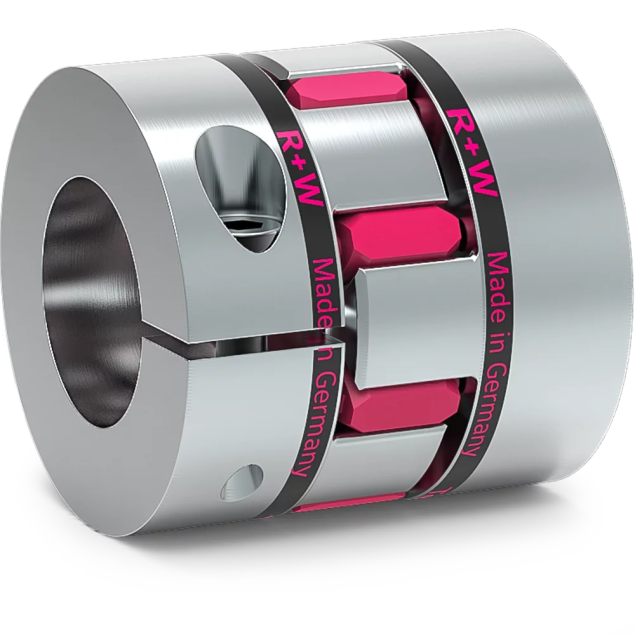

R+W EKL 60 A 22 22 elastomer coupling, aluminium and TPU
HV3020010197The EKL size 60 elastomer coupling with clamping hub is a coupling designed to provide performance in various industrial applications. With its short overall length, easy mounting, and vibration damping capabilities, this coupling is a reliable choice for demanding environments.
Made to order
Expected shipment: 26-02-2025
More Information
Description

Key features:
- Short overall length for compact installations.
- Easy mounting process for quick and hassle-free assembly.
- Excellent vibration damping properties to minimize stress on connected equipment.
Specifications:
- Type: Elastomer coupling with clamping hub
- Elastomer type: Type A with shore hardness 98 Sh D
- Temperature range: -30 °C to +100 °C
Design and materials:
- Two concentrically machined hubs with curved jaws for enhanced flexibility and torque transmission.
- One clamping screw on each side for secure and efficient connection.
- Hubs made from aluminum for durability and resistance to wear.
- Elastomer insert made from wear-resistant thermally stable TPU for long-lasting performance.
Bore specifications:
- Bore D1: Ø22mm H7
- Bore D2: Ø22mm H7
