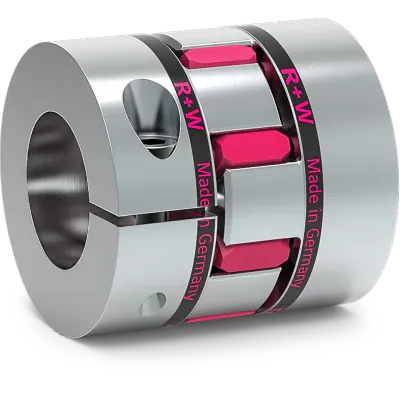

EKL 300 B 30 30 elastomer coupling, aluminium and TPU
HV3020010201The EKL size 300 elastomer coupling with clamping hub is a coupling designed to provide efficient power transmission while offering vibration damping capabilities. This coupling is ideal for a wide range of applications where short overall length, easy mounting, and vibration reduction are essential.
Specifications
Product description
Downloads
€223.05
Made to order
Expected shipment: 14-11-2024
More Information
Material
Aluminium and TPU
Length (mm)
86
Elastomer insert
B
Max. moment (Nm)
810
Coupling size
30
Bore D1
Ø30mm H7
Bore D2
Ø30mm H7
Product type
Elastomer coupling
Description
Key features:
- Short overall length for compact installations.
- Easy mounting process for convenience and time-saving.
- Vibration damping properties to minimize machine vibrations and ensure smooth operation.
Specifications:
- Type of elastomer: Type B
- Shore hardness: 64 Sh D
- Temperature range: -30 °C to +120 °C
Design and materials:
- Two concentrically machined hubs with curved jaws provide precise and secure coupling.
- Clamping screw on each side ensures a firm and reliable connection.
- Hubs made from aluminum for durability and enhanced performance.
- Elastomer insert crafted from wear-resistant and thermally stable TPU.
Bore specifications:
- Bore D1: Ø30mm H7
- Bore D2: Ø30mm H7
Downloads
EK installation and operating instructions
EK installation and operating instructions.pdf
Download file
