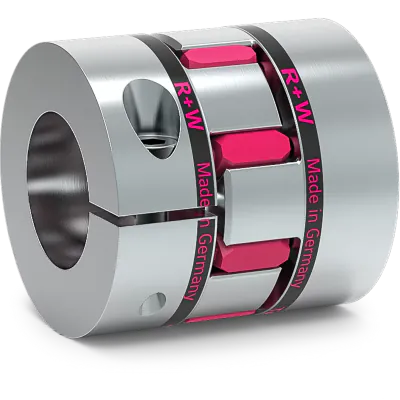

R+W EKL 20 B 19 19 elastomer coupling, stainless steel
HV3020010219The EKL size 20 elastomer coupling with clamping hub is a coupling designed to provide performance and durability. With its key features of a short overall length, easy mounting, and vibration damping capabilities, this coupling is an ideal choice for various industrial applications.
Specifications
Product description
Downloads
€238.60
Made to order
Expected shipment: 07-01-2025
More Information
Material
Stainless steel and TPU
Length (mm)
50
Elastomer insert
B
Max. moment (Nm)
42
Manufacturer
R+W
Coupling size
20
Outer diameter (mm)
Ø42
Bore D1
Ø19mm H7
Bore D2
Ø19mm H7
Description
Key features:
- Short overall length: The compact design of the EKL size 20 ensures efficient space utilization in tight installation areas.
- Easy mounting: The coupling's two concentrically machined hubs with curved jaws and clamping screws on each side.
Specifications:
- Type: B elastomer coupling
- Shore hardness: 64 Sh D
- Temperature range: -30 °C to +120 °C
Design and materials:
- Hubs: The EKL Size 20 features two hubs made from stainless steel, providing excellent strength.
- Elastomer insert: The coupling incorporates a wear-resistant thermally stable TPU elastomer insert.
Bore specifications:
- Bore D1: Ø19mm H7
- Bore D2: Ø19mm H7
Downloads
EK installation and operating instructions
EK installation and operating instructions.pdf
Download file
