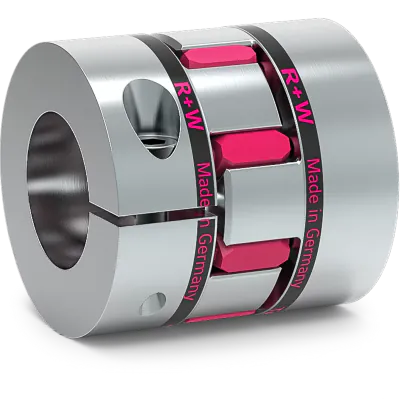

R+W EKL 20 B 14 14 elastomer coupling, aluminium and TPU
HV3020010222The EKL size 20 elastomer coupling with clamping hub is a coupling designed to provide performance in various industrial applications. With its key features of a short overall length, easy mounting, and vibration damping, this coupling offers an optimal solution for transmitting torque and compensating for misalignment between shafts.
Specifications
Product description
Downloads
€86.86
Made to order
Expected shipment: 24-01-2025
More Information
Material
Aluminium and TPU
Length (mm)
50
Elastomer insert
B
Max. moment (Nm)
42
Manufacturer
R+W
Coupling size
20
Outer diameter (mm)
Ø42
Bore D1
Ø14mm H7 with keyway
Bore D2
Ø14mm H7 with keyway
Description
Key features:
- Short overall length: The compact design of the EKL size 20 allows for easy integration into space-constrained systems.
- Easy mounting: The coupling's two concentrically machined hubs with curved jaws and clamping screws on each side enable quick and hassle-free installation, reducing downtime.
- Vibration damping: With the type B elastomer insert, the coupling effectively minimizes vibrations.
Specifications:
- Elastomer type: Type B
- Shore hardness: 64 Sh D
- Temperature range: -30 °C to +120 °C
Design and materials:
- Hubs: The coupling's hubs are machined from aluminum.
- Elastomer insert: The EKL size 20 utilizes a wear-resistant and thermally stable TPU elastomer insert.
Bore specifications:
- Bore D1: Ø14mm H7 with keyway
- Bore D2: Ø14mm H7 with keyway
Downloads
EK installation and operating instructions
EK installation and operating instructions.pdf
Download file
