Description
Key features:
- Short overall length: The compact design of the EKL size 20 coupling ensures space-saving installation.
- Easy mounting: The coupling features a user-friendly design.
- Vibration damping: The elastomer insert effectively dampens vibrations, minimizing the impact on connected components.
Specifications:
- Elastomer type: Type A elastomerÂ
- Shore hardness: of 98 Sh D.
- Temperature range: -30 °C to +100 °C
Design and Materials:

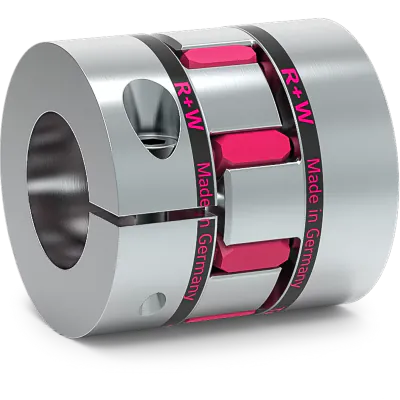

- Concentrically machined hubs: The EKL size 20 coupling consists of two hubs with curved jaws.
- Clamping hub: Each hub is equipped with a clamping screw, ensuring secure and reliable connection.
- Aluminum hubs: The hubs are made from aluminum, providing strength-to-weight ratio and corrosion resistance.
- Wear-resistant elastomer insert: The coupling utilizes a thermally stable TPU elastomer insert that is wear-resistant.
Bore Specifications:
- Bore D1: Ø24mm H7
- Bore D2: Ø20mm H7
Specifications
Material
Aluminum and TPU
Length (mm)
50
Elastomer insert
A
Max. moment (Nm)
34
Manufacturer
R+W
Coupling size
20
Outer diameter (mm)
Ø42
Bore D1
Ø24mm H7
Bore D2
Ø20mm H7
Foreign trade
HS-Code
84836020
ERP net weight (Kg)
0.15
Country of origin
DEU
