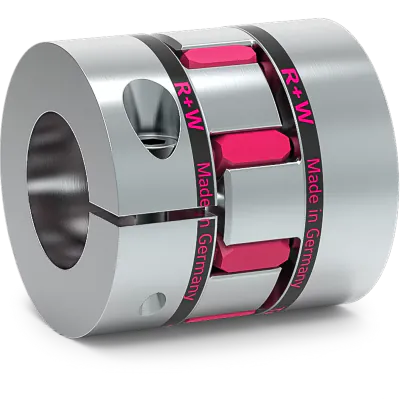

EKL 20 A 15 19 elastomer coupling, aluminium and TPU
HV3020010204The EKL size 20 elastomer coupling with clamping hub is a versatile coupling designed for a wide range of applications. With its features and specifications, it provides reliable and efficient power transmission while minimizing vibrations.
Specifications
Product description
Downloads
€86.86
Made to order
Expected shipment: 19-11-2024
More Information
Material
Aluminium and TPU
Length (mm)
50
Elastomer insert
A
Max. moment (Nm)
34
Coupling size
19
Bore D1
Ø15mm H7
Bore D2
Ø19mm H7
Product type
Elastomer coupling
Description
Key features:
- Short overall length: The compact design of the EKL size 20 coupling ensures optimal space utilization.
- Easy mounting: The coupling's has two concentrically machined hubs with curved jaws and clamping screws on each side.
- Vibration damping: The elastomer insert effectively absorbs vibrations.
Specifications:
- Type: A elastomer coupling
- Shore hardness: 98 Sh D
- Temperature range: -30 °C to +100 °C.
Design and materials:
- Hubs: The EKL size 20 coupling features two hubs made from aluminum.
- Elastomer insert: The wear-resistant and thermally stable TPU (Thermoplastic Polyurethane) elastomer insert enhances the coupling's performance.
Bore specifications:
- Bore D1: Ø15mm H7
- Bore D2: Ø19mm H7
Downloads
EK installation and operating instructions
EK installation and operating instructions.pdf
Download file
