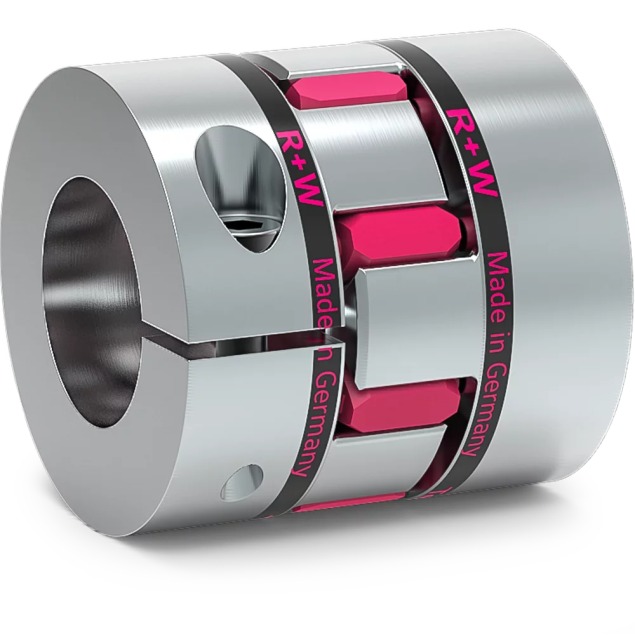

R+W EKL 20 A 10 22 elastomer coupling, aluminium and TPU
HV3020010217The EKL size 20 is a high-quality elastomer coupling designed to provide performance in various industrial applications. With its short overall length, easy mounting process, and vibration damping capabilities, this coupling is an ideal choice for demanding environments.
Specifications
Product description
Downloads
€86.73
Made to order
Expected shipment: 31-01-2025
More Information
Material
Aluminium and TPU
Length (mm)
50
Elastomer insert
A
Max. moment (Nm)
34
Manufacturer
R+W
Coupling size
20
Outer diameter (mm)
Ø42
Bore D1
Ø10mm H7 with keyway
Bore D2
Ø22mm H7 with keyway
Description
Key features:
- Short overall length: The compact design of the EKL size 20 ensures it occupies minimal space.
- Easy mounting: The coupling features a user-friendly design that facilitates quick and hassle-free installation.
- Vibration damping: Effectively absorbs and reduces vibrations.
Specifications:
- Elastomer type: Type A
- Shore hardness: 98 Sh D
- Temperature range: -30 °C to +100 °C
Design and materials:
- Two concentrically machined hubs: The coupling incorporates two hubs with curved jaws.
- Clamping hub: Each hub is equipped with a clamping screw on either side.
- Aluminum hubs: The hubs are precision-engineered from aluminum.
- Wear-resistant TPU elastomer insert: The elastomer insert is made from thermally stable TPU material.
Bore specifications:
- Bore D1: Ø10mm H7 with keyway
- Bore D2: Ø22mm H7 with keyway
Downloads
EK installation and operating instructions
EK installation and operating instructions.pdf
Download file
