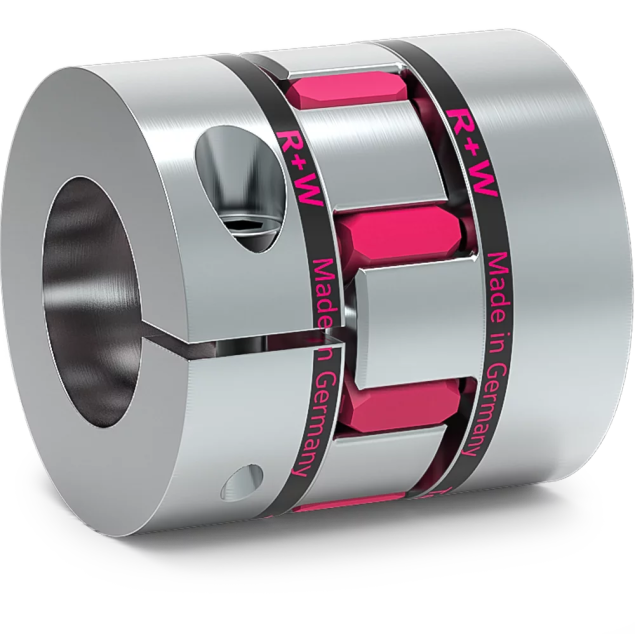

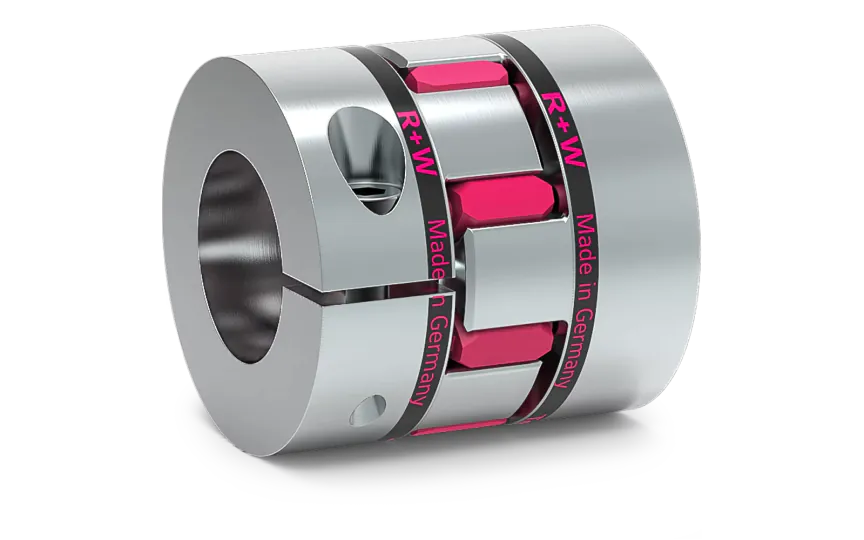

R+W EKL 2 A 5 5 elastomer coupling, aluminium and TPU
HV3020010210The EKL size 2 elastomer coupling with clamping hub is a coupling designed to provide performance in various industrial applications. With its compact size, easy mounting, and vibration damping capabilities, this coupling offers reliability and efficiency.
Made to order
Expected shipment: 18-02-2025
More Information
Description

Key features:
- Short overall length: The compact design of the EKL size 2 ensures space-saving installation.
- Easy mounting: The coupling's two concentrically machined hubs with curved jaws and clamping screws on each side.
- Vibration damping: The elastomer insert effectively absorbs vibrations, reducing stress and enhancing the overall performance and longevity of the machinery.
Specifications:
- Elastomer type: Type A
- Shore hardness: 98 Sh D
- Temperature range: -30 °C to +100 °C
Design and materials:
- Hubs: The hubs are precision-machined from aluminum.
- Elastomer insert: The elastomer insert is made from wear-resistant and thermally stable TPU (thermoplastic polyurethane).
Bore specifications:
- Bore D1: Ø5mm H7
- Bore D2: Ø5mm H7
