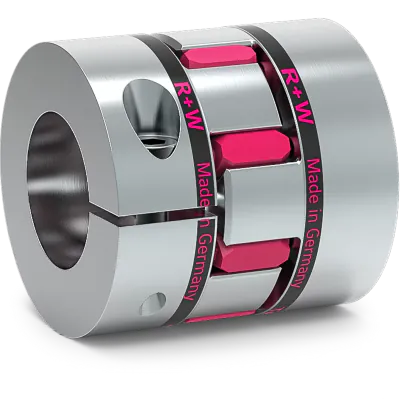

R+W EKL 2 A 3 3 elastomer coupling, aluminium and TPU
HV3020010209The EKL size 2 elastomer coupling is a coupling designed for efficient power transmission and precise alignment in various industrial applications. With its features and reliable performance, it is the perfect choice for demanding environments.
Specifications
Product description
Downloads
€35.25
Made to order
Expected shipment: 28-01-2025
More Information
Material
Aluminium and TPU
Length (mm)
20
Elastomer insert
A
Max. moment (Nm)
4
Manufacturer
R+W
Coupling size
2
Outer diameter (mm)
Ø16
Bore D1
Ø3mm H7
Bore D2
Ø3mm H7
Description
Key features:
- Short overall length: The compact design ensures minimal space requirements.
- Easy mounting: The coupling features a user-friendly design, allowing for quick and hassle-free installation.
- Vibration damping: With its elastomer insert, the EKL size 2 effectively dampens vibrations.
Specifications:
- Elastomer type: A elastomer coupling
- Shore hardness: 98 Sh D
- Temperature range: -30 °C to +100 °C.
Design and materials:
- Two concentrically machined hubs: The coupling features two hubs with curved jaws.
- Clamping hub: Each hub is equipped with a clamping screw.
- Aluminum hubs: The hubs are constructed from aluminum.
- Wear-resistant thermally stable TPU: The elastomer insert is made from thermally stable TPU.
Bore Specifications:
- Bore D1: Ø3mm H7
- Bore D2: Ø3mm H7
Downloads
EK installation and operating instructions
EK installation and operating instructions.pdf
Download file
