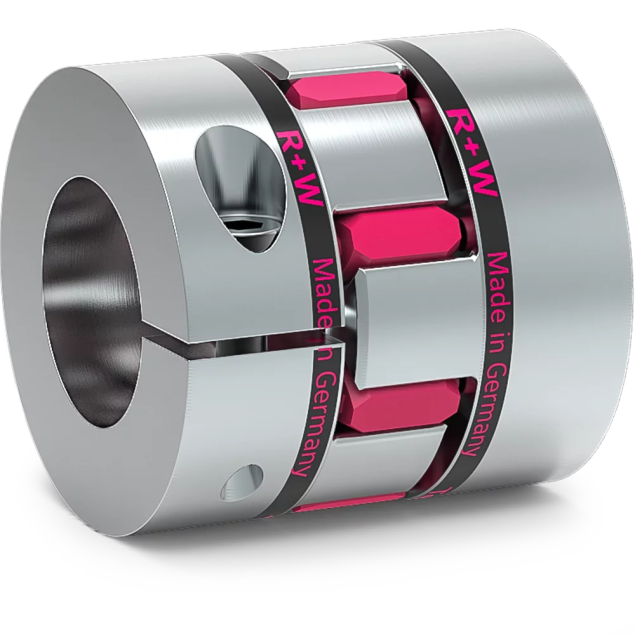

EKL 10 A 16 14 elastomer coupling, aluminium and TPU
HV3020010188The EKL size 10 elastomer coupling with clamping hub is a versatile and reliable coupling designed to provide performance in various industrial applications. With its compact size, easy mounting, and vibration damping capabilities, this coupling offers a reliable solution for connecting shafts and transmitting torque.
Specifications
Product description
Downloads
€72.25
Made to order
Expected shipment: 12-11-2024
More Information
Material
Aluminium and TPU
Length (mm)
32
Elastomer insert
A
Max. moment (Nm)
25
Coupling size
10
Bore D1
Ø16mm H7
Bore D2
Ø14mm H7
Product type
Elastomer coupling
Description
Key Features:
- Short overall length: The compact design of the EKL size 10 coupling ensures that it occupies minimal space.
- Easy mounting: The coupling features a user-friendly design that facilitates quick and hassle-free installation.
- Vibration damping: The elastomer insert of the coupling effectively absorbs shocks and vibrations.
Specifications:
- Elastomer type: A elastomer
- Shore hardness: 98 Sh D
- Temperature range: -30 °C to +100 °C
Design and materials:
- Two concentrically machined hubs with curved jaws: The coupling is designed with precision-machined hubs that feature curved jaws.
- Clamping screw on each side: The clamping screws provide a secure grip and prevent slippage.
- Aluminum hubs: The hubs are constructed from aluminum, ensuring durability and resistance to wear and corrosion.
- Wear-resistant thermally stable TPU elastomer insert: The elastomer insert is made from a wear-resistant thermoplastic polyurethane (TPU) material.
Bore specifications:
- Bore D1: Ø16mm H7
- Bore D2: Ø14mm H7
Downloads
EK installation and operating instructions
EK installation and operating instructions.pdf
Download file
