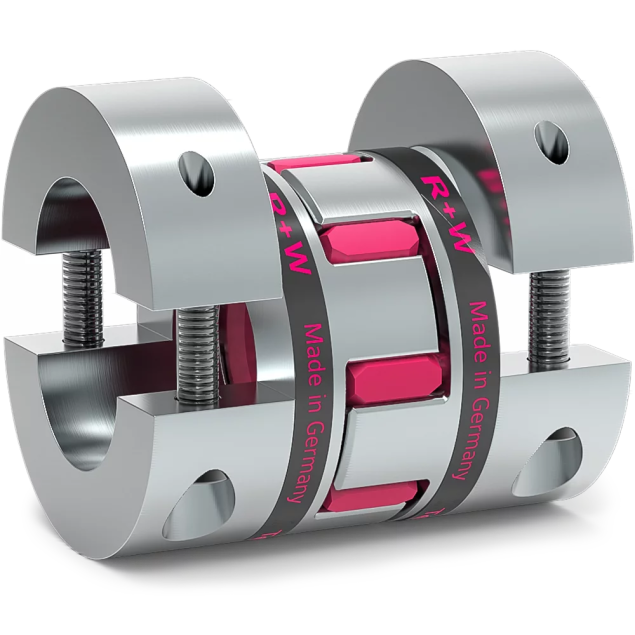

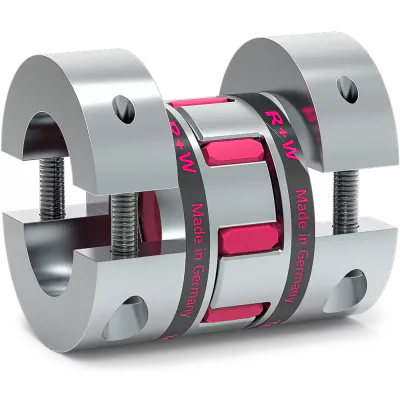

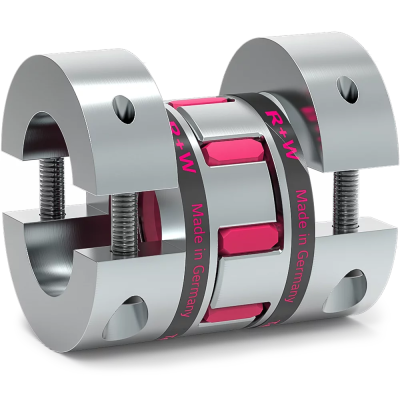

Description
Key features:
- Lateral mounting: The coupling allows lateral mounting, enabling flexible installation in constrained spaces.
- Easy installation and removal: The fully split clamping hub design simplifies the installation and removal process, reducing downtime.
- High concentricity: The coupling ensures high concentricity, minimizing vibration and maximizing efficiency.
Specifications:
- Elastomer type: Type A elastomer with a shore hardness of 98 Sh D.
- Temperature range: -30 °C to +100 °C, making it suitable for a wide range of operating environments.
Design and materials:
- Two concentrically machined, fully split hubs: The coupling features two hubs with curved jaws, providing secure and reliable connection.
- Clamping screw: Each hub is equipped with one clamping screw on each side for enhanced stability.
- Lateral removable clamping hub: The clamping hub half can be easily removed in one direction, allowing for convenient maintenance and replacement.
- Hub material: High strength aluminum for excellent durability.
- Elastomer insert material: Wear-resistant and thermally stable TPU ensures long-lasting performance.
Bore specifications:
- Bore D1: Ø20mm H7
- Bore D2: Ø15mm H7
Specifications
Material
Aluminum and TPU
Length (mm)
78
Elastomer insert
A
Max. moment (Nm)
120
Manufacturer
R+W
Coupling size
60
Outer diameter (mm)
Ø56
Bore D1
Ø20mm H7
Bore D2
Ø15mm H7
Foreign trade
HS-Code
84836080
ERP net weight (Kg)
0.35
Country of origin
DEU
