Key features:

• Lateral mounting: The coupling allows lateral mounting, providing flexibility in installation and accommodating different spatial requirements.
• Easy installation and Removal: The fully split clamping hub design simplifies the installation and removal process, saving time and effort during maintenance or replacement.
• High concentricity: The coupling ensures precise alignment and high concentricity between the connected shafts, minimizing vibration and improving overall system performance.

Specifications:

• Type of elastomer: The coupling comes with a Type C elastomer, featuring a shore hardness of 80 Sh A, ensuring excellent resilience and durability.
• Temperature range: The elastomer insert is capable of operating within a temperature range of -30 °C to +100 °C.

Design and materials:

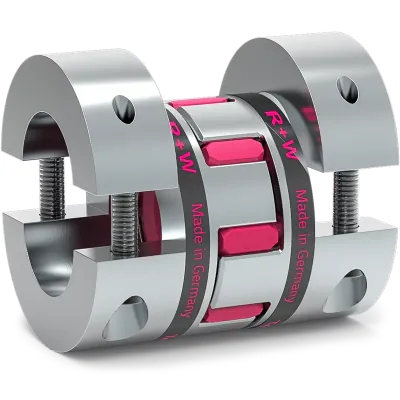

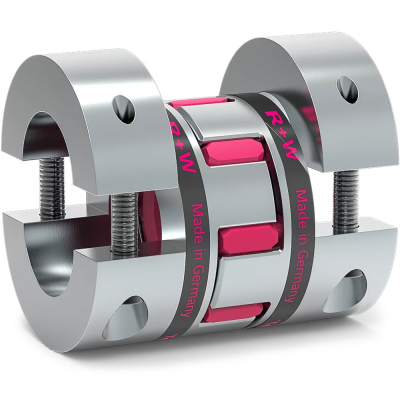

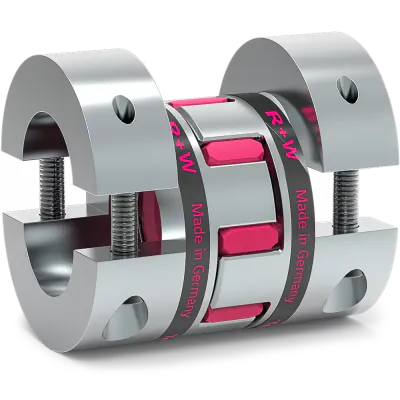

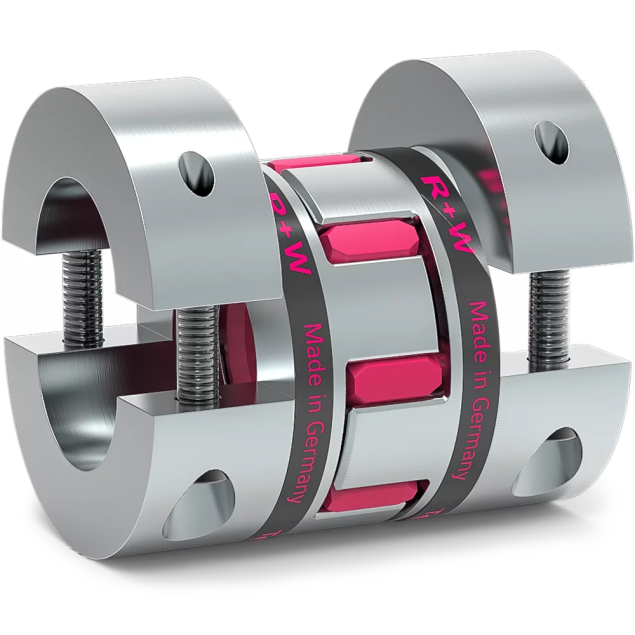

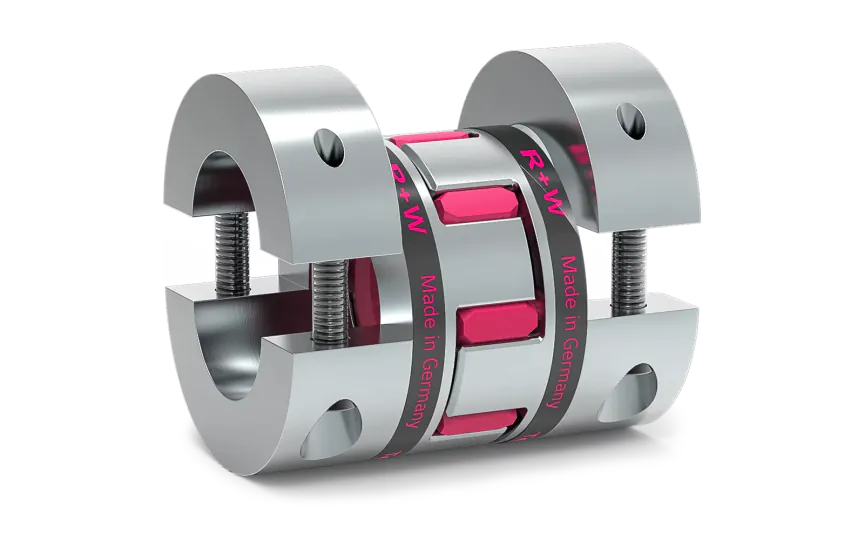

• Fully split clamping hub: The coupling consists of two concentrically machined hubs with curved jaws, featuring a fully split design. Each hub is equipped with a clamping stainless steel screw for secure and robust connection.
• Lateral removability: The clamping hub half can be laterally removed in one direction, facilitating quick and hassle-free maintenance.
• Hub material: The hubs are constructed from high-strength aluminum, providing lightweight yet sturdy support.
• Elastomer insert material: The elastomer insert is made from wear-resistant and thermally stable TPU, ensuring extended service life and consistent performance.

Bore specifications:

• Bore D1: Ø16mm H7
• Bore D2: Ø15mm H7
