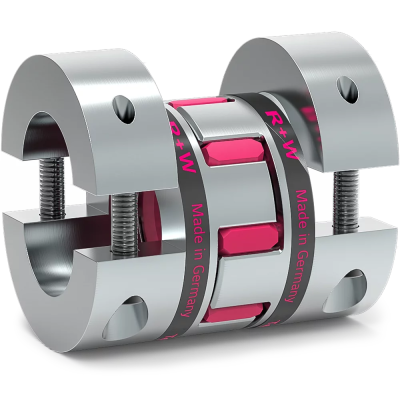

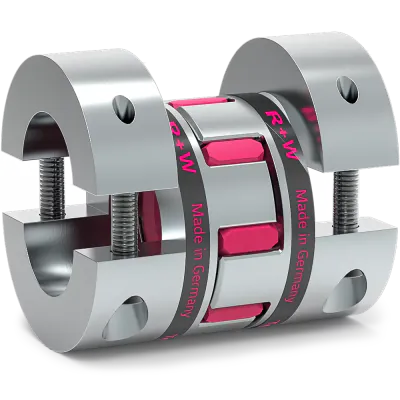

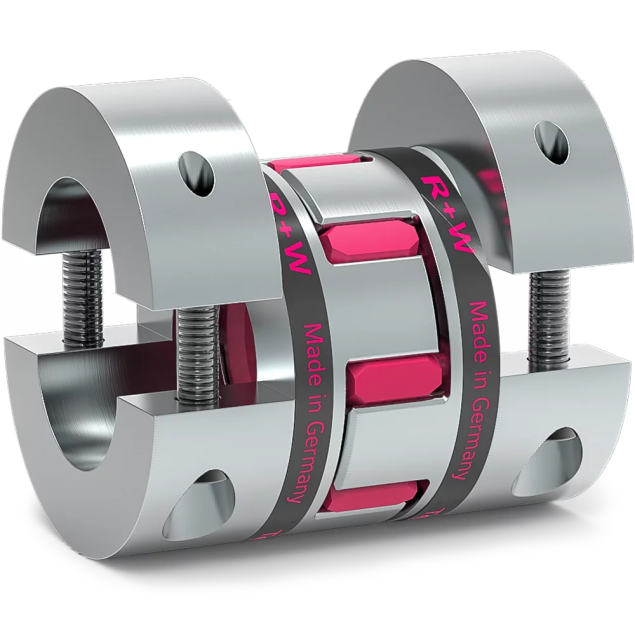

Key features:

• Lateral mounting: Enables convenient installation and facilitates space-saving arrangements.
• Easy installation and removal: The fully split clamping hub design ensures effortless coupling assembly and disassembly, reducing downtime.
• High concentricity: Guarantees accurate alignment of the connected shafts, minimizing vibration and enhancing operational efficiency.

Specifications:

• Type B elastomer: The coupling is equipped with a Type B elastomer with a shore hardness of 64 Sh D, ensuring flexibility and resilience.
• Temperature range: It can withstand temperatures ranging from -30 °C to +120 °C, making it suitable for a wide range of operating conditions.

Design and materials:

• Two concentrically machined, fully split hubs: The coupling features two hubs with curved jaws, allowing for optimal torque transmission and improved flexibility.
• Stainless steel clamping screws: Each hub is equipped with a stainless steel clamping screw for secure and reliable fastening.
• High strength aluminum hubs: The hubs are constructed from high strength aluminum, providing durability and resistance to wear.
• Wear-resistant thermally stable TPU elastomer insert: The elastomer insert is made from thermoplastic polyurethane (TPU), known for its excellent wear resistance and thermal stability.

Bore specifications:

• Bore D1: Ø20mm H7 with keyway
• Bore D2: Ø15mm H7 with keyway
