Key features:

• Lateral mounting: The coupling allows lateral mounting, enabling easy integration into existing systems.
• Easy installation and removal: The fully split clamping hub design facilitates quick and hassle-free installation as well as removal for maintenance or replacement purposes.
• High concentricity: The coupling ensures high concentricity between the connected shafts, minimizing misalignment and enhancing operational stability.

Specifications:

• Elastomer type: The coupling is equipped with a Type A elastomer, featuring a shore hardness of 98 Sh D.
• Temperature range: It offers temperature resistance, with a range of -30 °C to +100 °C.

Design and materials:

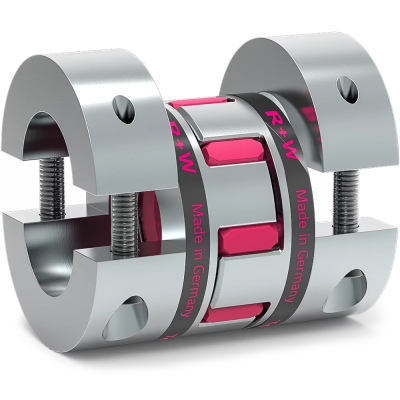

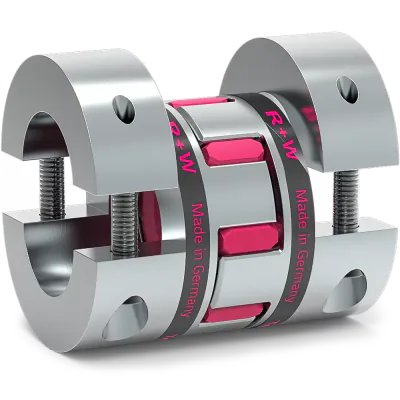

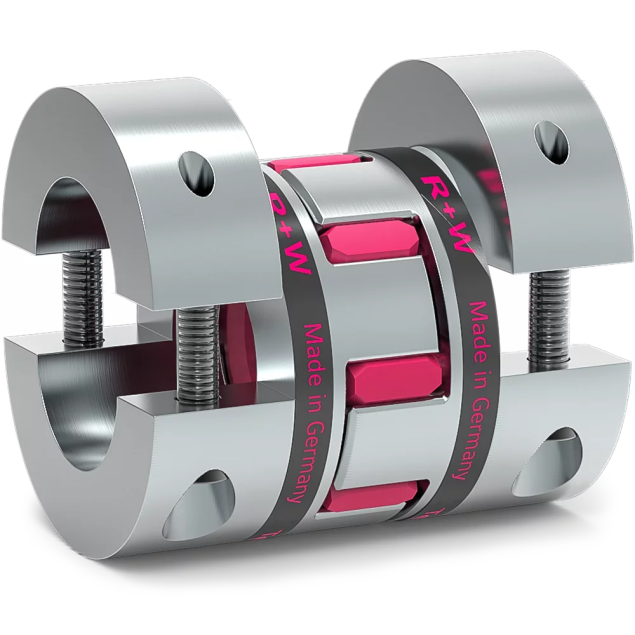

• Fully split hubs: The coupling features two concentrically machined hubs with curved jaws and a clamping screw on each side. This design allows for easy and convenient assembly.
• Lateral removability: One clamping hub half can be laterally removed in a single direction, simplifying maintenance and replacement procedures.
• Hub material: The hubs are constructed from high-strength aluminum, ensuring durability and optimal performance.
• Elastomer insert: The elastomer insert is made from wear-resistant thermally stable TPU, providing long-lasting performance and reliability.

Bore specifications:

• Bore min: Ø8mm H7
• Bore max: Ø25mm H7
