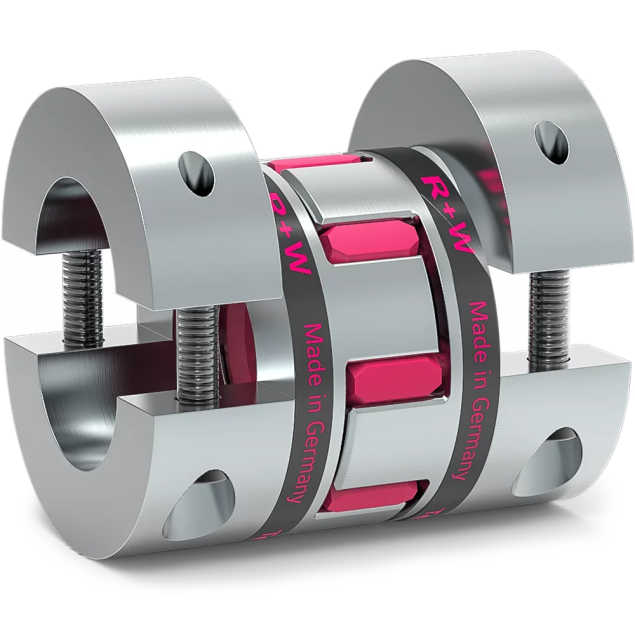

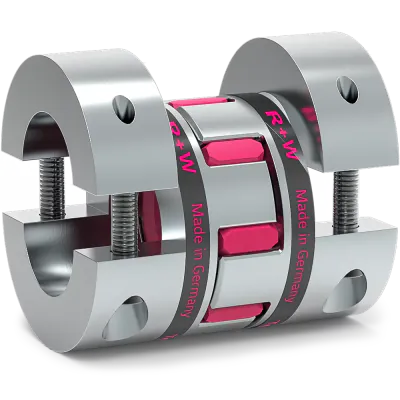

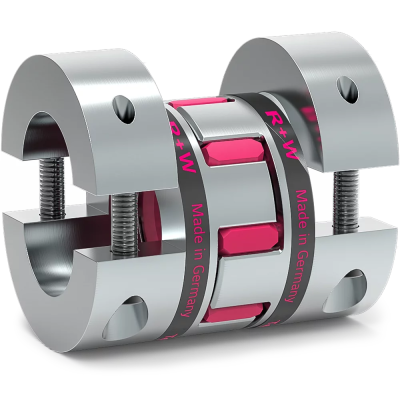

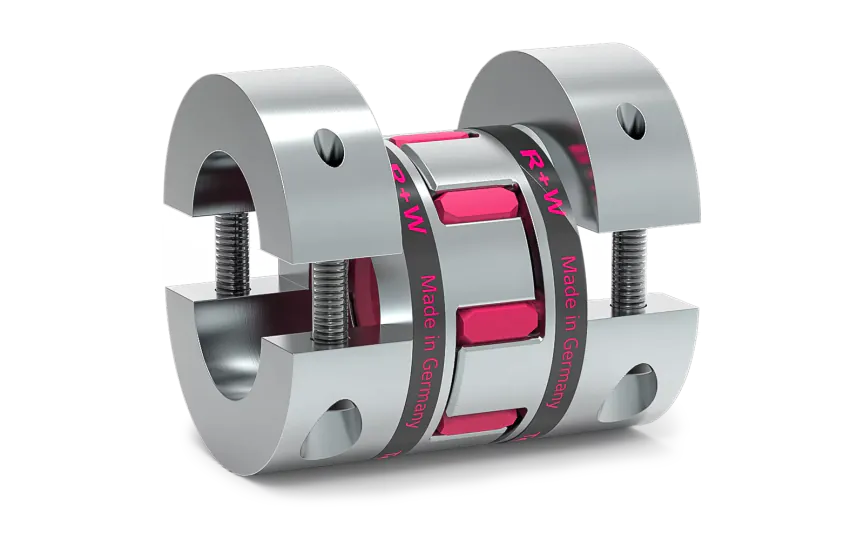

Description
Key features:
- Lateral mounting: The EKH size 20 Coupling allows for lateral mounting, enabling flexible installation in tight spaces or specific orientations.
- Easy installation and removal: The fully split clamping hub design facilitates quick and hassle-free installation and removal, reducing downtime and increasing productivity.
- High concentricity: The coupling ensures excellent concentricity between the connected shafts, minimizing vibration, and maximizing the efficiency of power transmission.
Specifications:
- Elastomer type: Type A
- Shore hardness: 98 Sh D
- Temperature range: -30 °C to +100 °C
Design and materials:
- Two concentrically machined, fully split hubs: The coupling features two hubs with curved jaws, ensuring a secure and reliable connection between shafts.
- Clamping screw on each side: The presence of clamping screws enhances the stability and strength of the coupling.
- High strength aluminum hubs: The hubs are constructed from high strength aluminum, providing excellent durability and resistance to wear.
- Wear-resistant thermally stable TPU elastomer insert: The elastomer insert is made from a thermally stable TPU material, ensuring longevity and reliability in demanding operating conditions.
Bore specifications:
- Bore D1: Ø15mm H7
- Bore D2: Ø25mm H7
Specifications
Material
Aluminum and TPU
Length (mm)
66
Elastomer insert
A
Max. moment (Nm)
34
Manufacturer
R+W
Coupling size
20
Outer diameter (mm)
Ø42
Bore D1
Ø15mm H7
Bore D2
Ø25mm H7
Foreign trade
HS-Code
84836080
ERP net weight (Kg)
0.15
Country of origin
DEU
