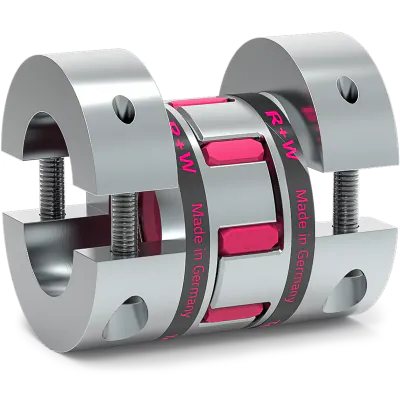

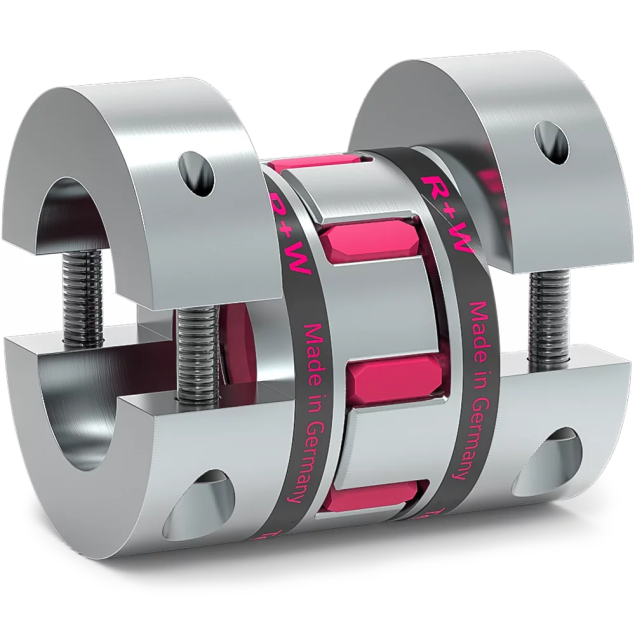

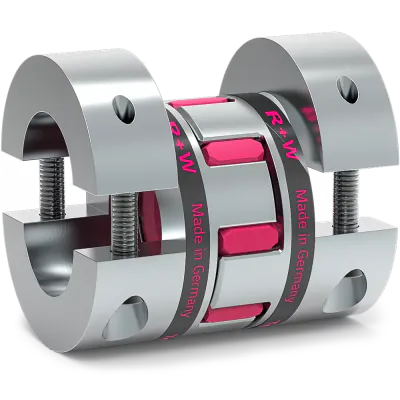

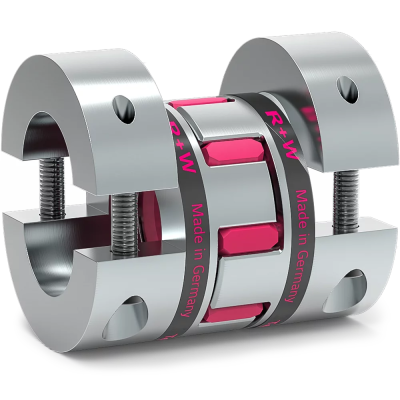

Description
Key features:
- Lateral mounting: Allows for flexible positioning and easy integration into various systems.
- Easy installation and removal: Simplifies the setup process and minimizes downtime during maintenance.
- High concentricity: Ensures precise alignment, reducing vibrations and enhancing overall performance.
Specifications:
- Type: A elastomer coupling
- Shore hardness: 98 Sh D
- Temperature range: -30 °C to +100 °C
Design and materials:
- Two concentrically machined, fully split hubs: Enables easy assembly and disassembly.
- Curved jaws and clamping screws: Provide a secure and reliable connection.
- Lateral removability: Allows for quick access and convenient maintenance in one direction.
- Hubs: Made from high-strength aluminum for durability and reliable performance.
- Elastomer insert: Constructed from wear-resistant and thermally stable TPU for long-lasting functionality.
Bore specifications:
- Bore D1: Ø15mm H7 with keyway
- Bore D2: Ø15mm H7 with keyway
Specifications
Material
Aluminum and TPU
Length (mm)
66
Elastomer insert
A
Max. moment (Nm)
34
Manufacturer
R+W
Coupling size
20
Outer diameter (mm)
Ø42
Bore D1
Ø15mm H7 with keyway
Bore D2
Ø15mm H7 with keyway
Foreign trade
HS-Code
84836080
ERP net weight (Kg)
0.15
Country of origin
DEU
