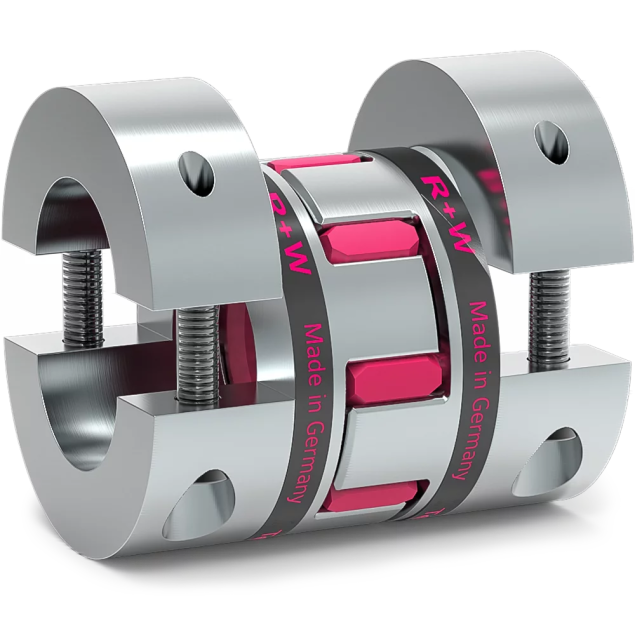

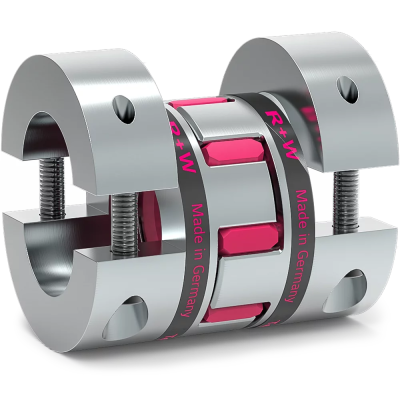

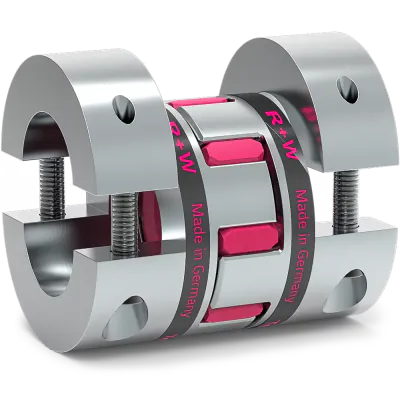

R+W EKH 20 A 14 20 elastomer coupling, aluminium and TPU
HV3020010216The EKH size 20 elastomer coupling with fully split clamping hub is a high-quality coupling designed for efficient power transmission in various industrial applications. With its features and robust construction, it provides reliable and precise performance while ensuring easy installation and removal.
Made to order
Expected shipment: 30-01-2025
More Information
Description
Key features:
- Lateral mounting: The coupling allows lateral mounting, enabling flexible integration into diverse machinery setups.
- Easy installation and removal: The fully split clamping hub design facilitates hassle-free installation and removal, saving valuable time and effort during maintenance.
- High concentricity: The coupling offers high concentricity, ensuring accurate alignment between the connected shafts for optimal power transmission and reduced vibrations.
Specifications:
- Shore hardness: 98 Sh D
- Temperature range: -30 °C to +100 °C
Design and materials:
- Two concentrically machined, fully split hubs: The coupling features two precision-machined hubs with curved jaws and a clamping screw on each side, ensuring secure and reliable connection.
- Lateral removability: The clamping hub half can be laterally removed in one direction, further simplifying installation and maintenance procedures.
- Hub material: High strength aluminum for enhanced durability and resistance to wear.
- Elastomer insert material: The coupling utilizes a wear-resistant and thermally stable TPU (Thermoplastic Polyurethane) insert, ensuring long-lasting performance under demanding conditions.
Bore specifications:
- Bore D1: Ø14mm H7
- Bore D2: Ø20mm H7
