Key features:

• Lateral mounting: The coupling allows lateral mounting, providing flexibility in installation and accommodating space constraints.
• Easy installation and removal: The fully split clamping hub design simplifies the installation and removal process, reducing downtime and maintenance effort.
• High concentricity: The coupling ensures high concentricity, minimizing misalignment issues and optimizing power transmission efficiency.

Specifications:

• Type A elastomer: Equipped with a Type A elastomer, this coupling offers excellent flexibility and shock absorption properties.
• Shore hardness: The elastomer insert has a shore hardness of 98 Sh D, ensuring durability and resistance to wear.
• Temperature range: Operating within a wide temperature range of -30 °C to +100 °C, the coupling maintains its performance in diverse environments.

Design and materials:

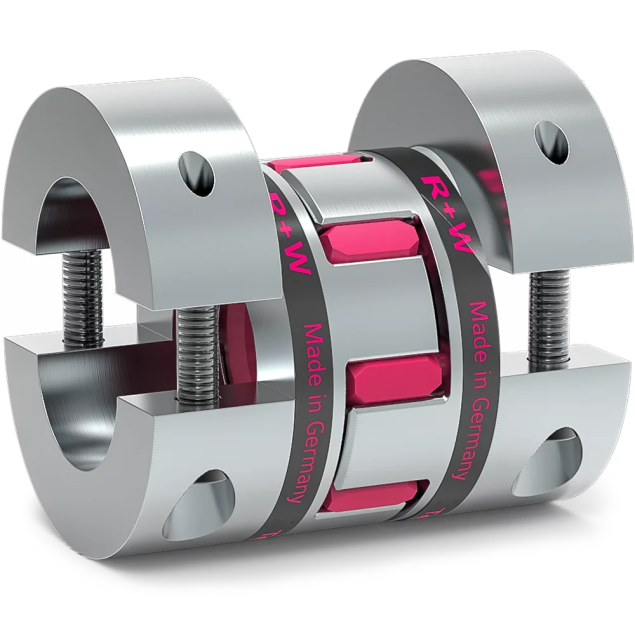

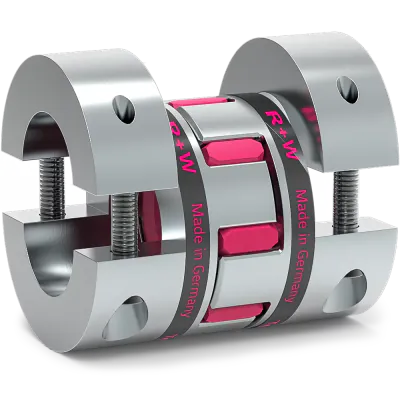

• Fully split hubs: The coupling features two concentrically machined, fully split hubs with curved jaws, providing secure and precise coupling engagement.
• Clamping screw: Each hub is equipped with a clamping screw on its side, ensuring a strong and reliable connection.
• Lateral removability: The clamping hub half can be easily removed laterally in one direction, facilitating maintenance and replacement.

Bore specifications:

• Bore D1: Ø11mm H7
• Bore D2: Ø20mm H7
