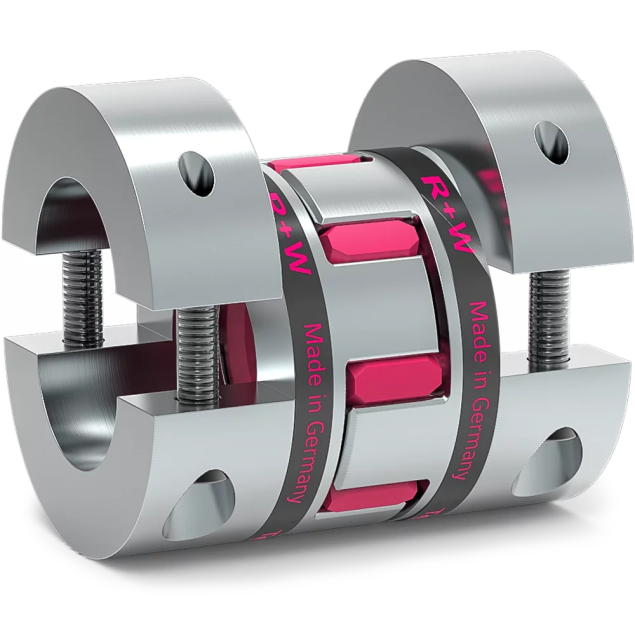

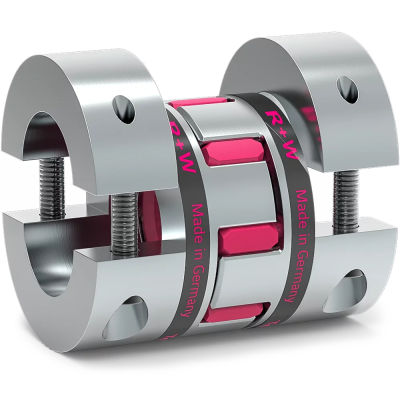

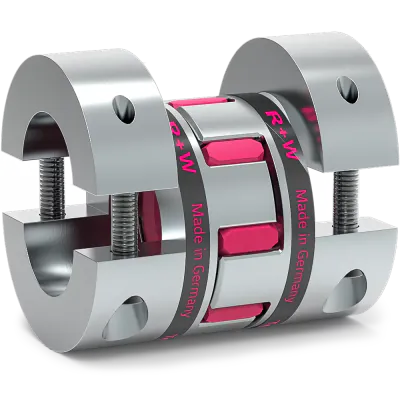

EKH 20 A 11 19 elastomer coupling, aluminium and TPU
HV3020010213The EKH size 20 elastomer coupling is a high-quality coupling designed for efficient power transmission and reliable performance.
Specifications
Product description
Downloads
€103.89
In stock
Expected shipment: 04-11-2024
More Information
Material
Aluminium and TPU
Length (mm)
66
Elastomer insert
A
Max. moment (Nm)
34
Coupling size
20
Bore D1
Ø11mm H7
Bore D2
Ø19mm H7
Product type
Elastomer coupling
Description
Key features:
- Lateral mounting: The coupling's lateral mounting feature allows for flexible installation in various orientations, accommodating different mechanical setups.
- Easy installation and removal: The fully split clamping hub design enables quick and hassle-free installation and removal, reducing downtime and improving efficiency.
- High concentricity: The coupling ensures precise alignment of the connected shafts, resulting in smooth operation and minimized vibration.
Specifications:
- Type: A elastomer coupling
- Shore hardness: 98 Sh D
- Temperature range: -30 °C to +100 °C
Design and materials:
- Two concentrically machined, fully split hubs: The coupling features two hubs with curved jaws, offering enhanced flexibility and torque transmission capabilities.
- Clamping screws: Each hub is equipped with a clamping screw, providing secure attachment and reliable power transfer.
- Lateral removable clamping hub half: The clamping hub half can be laterally removed in one direction, facilitating convenient maintenance and replacement.
- Hubs: Made from high-strength aluminum, ensuring durability and resistance to mechanical stress.
- Elastomer insert: Constructed from wear-resistant thermally stable TPU, guaranteeing long-lasting performance and stable operation.
Bore specifications:
- Bore D1: Ø11mm H7
- Bore D2: Ø19mm H7
Downloads
EK installation and operating instructions
EK installation and operating instructions.pdf
Download file
