Key features:

• Lateral mounting: The coupling allows lateral mounting, enabling flexible installation in tight spaces or applications with specific mounting requirements.
• Easy installation and removal: With its fully split clamping hub design, the coupling ensures quick and hassle-free installation and removal, minimizing downtime and increasing operational efficiency.
• High concentricity: The coupling offers excellent concentricity, ensuring precise alignment of connected shafts and reducing vibration and misalignment-related issues.

Specifications:

• Elastomer type: Type A elastomer with a shore hardness of 98 Sh D.
• Temperature range: The elastomer insert can withstand temperatures ranging from -30 °C to +100 °C.

Design and materials:

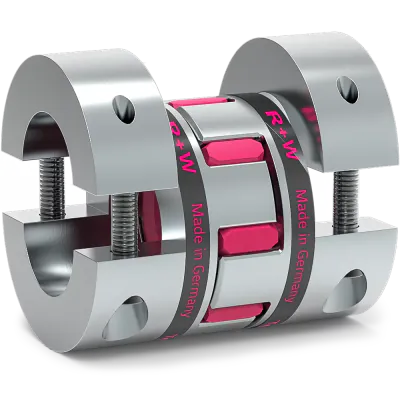

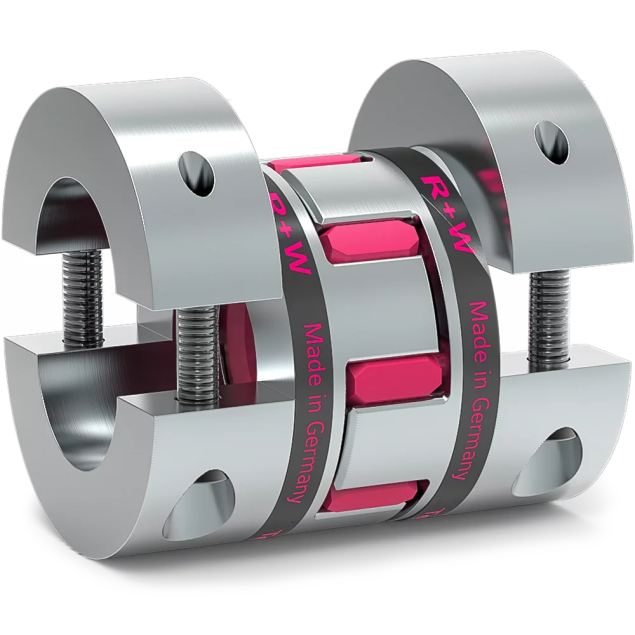

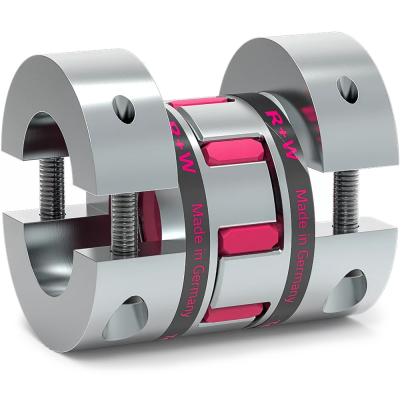

• Two concentrically machined, fully split hubs: The coupling features two hubs with curved jaws, meticulously machined to ensure optimal performance and durability.
• Clamping screw: Each hub is equipped with a clamping screw on either side, providing secure and reliable clamping force.
• Lateral removability: One clamping hub half can be laterally removed in one direction, facilitating easy maintenance and inspection.

Bore specifications:

• Bore min: Ø6mm H7
• Bore max: Ø16mm H7
