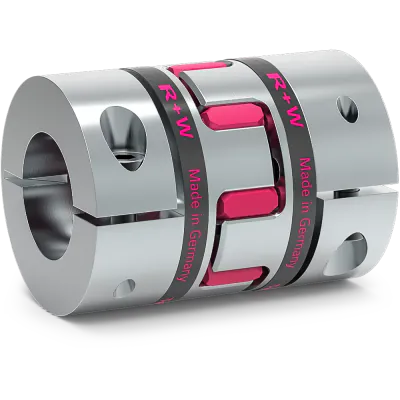

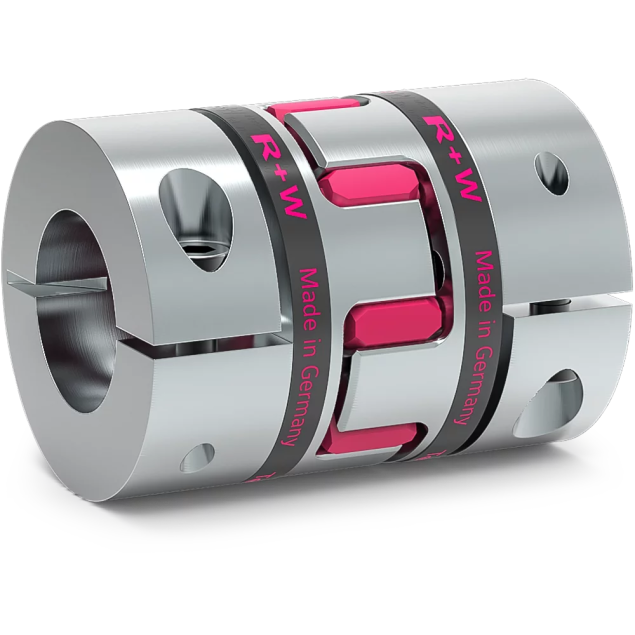

R+W EK2 20 B 12 18 elastomer coupling, aluminium and TPU

R+W EK2 20 B 12 18 elastomer coupling, aluminium and TPU

HV3020010179

The EKL size 20 elastomer coupling with clamping hub offers a range of key features that make it an ideal choice for various applications. With its short overall length, it allows for space-saving installations, ensuring efficient use of available space. The easy mounting process simplifies installation, reducing setup time and effort.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment: 03-04-2025

More Information

Material

Aluminium and TPU

Length (mm)

Elastomer insert

Max. moment (Nm)

Manufacturer

R+W

Coupling size

Outer diameter (mm)

Ø42

Bore D1

Ø12mm H7

Bore D2

Ø18mm H7

Description

Key features:

Short overall length for space-saving installations
Easy mounting process for quick and convenient setup
Excellent vibration damping properties for enhanced system stability

Specifications:

Type: Elastomer coupling with clamping hub
Elastomer type: B (Shore hardness 64 Sh D)
Temperature range: -30 °C to +120 °C

Design and materials:

Two concentrically machined hubs with curved jaws for optimal torque transmission
One clamping screw on each side for secure and reliable connection
Hubs made from high-strength aluminum for durability and strength
Elastomer insert crafted from wear-resistant and thermally stable TPU for long-lasting performance

Bore specifications:
