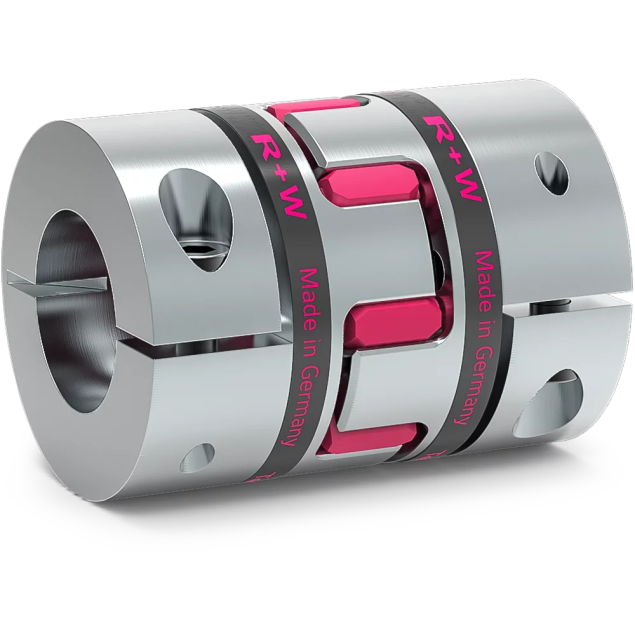

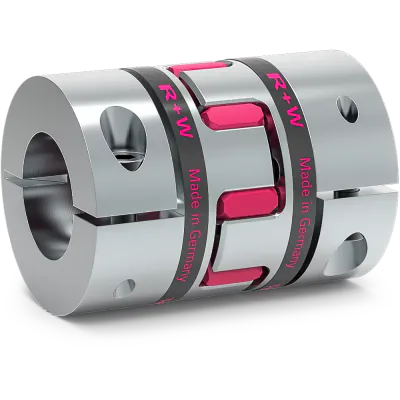

EK2 20 A 20 24 elastomer coupling, aluminium and TPU
HV3020010161The EK2 size 20 elastomer coupling with clamping hub is a high-quality coupling designed to provide performance and reliability in various industrial applications. With its easy mounting, high concentricity, and vibration damping features, this coupling offers a reliable and efficient solution for transmitting torque while minimizing the effects of misalignment and vibration.
Specifications
Product description
Downloads
€21.05
Made to order
Expected shipment: 14-11-2024
More Information
Material
Aluminium and TPU
Length (mm)
66
Elastomer insert
A
Max. moment (Nm)
34
Coupling size
20
Bore D1
Ø20mm H7
Bore D2
Ø24mm H7
Product type
Elastomer coupling
Description
Key features:
- Easy mounting: The coupling is designed for easy installation, ensuring quick and hassle-free setup.
- High concentricity: The two concentrically machined hubs with curved jaws ensure precise alignment and high concentricity, resulting in optimal torque transmission.
- Vibration damping: The elastomer insert effectively dampens vibrations, reducing wear and tear on connected equipment and improving overall system performance.
Technical specifications:
- Elastomer type: Type A elastomer with a shore hardness of 98 Sh D.
- Temperature range: The coupling can operate within a temperature range of -30 °C to +100 °C, ensuring reliable performance in diverse environments.
- Hubs: The coupling hubs are made from high-strength aluminum, providing durability and strength.
- Elastomer insert: The elastomer insert is crafted from wear-resistant and thermally stable TPU, ensuring longevity and reliable performance.
Bore Specifications:
- Bore D1: Ø20mm H7
- Bore D2: Ø24mm H7
Downloads
EK installation and operating instructions
EK installation and operating instructions.pdf
Download file
