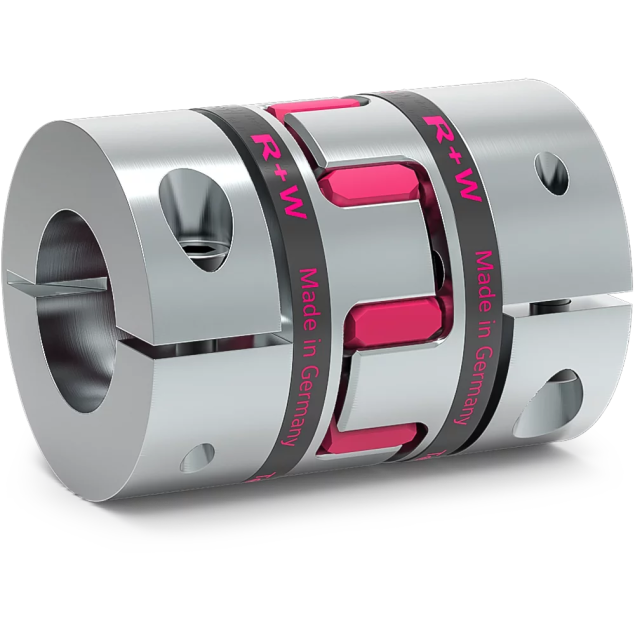

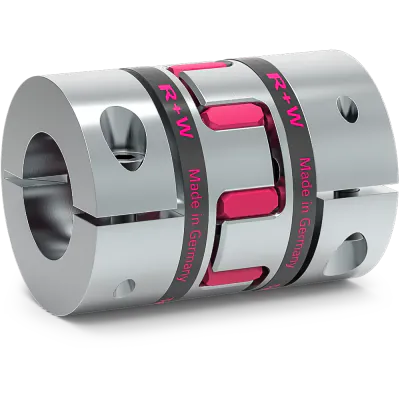

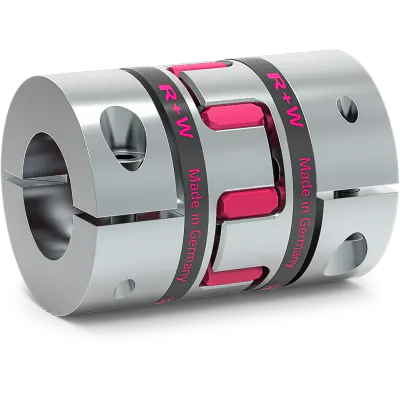

Key features:

• Short overall length: The compact design of the EKL Size 20 allows for easy integration into tight spaces, making it suitable for applications with limited clearance.
• Easy mounting: The coupling features a simple and straightforward mounting process, ensuring quick installation and reducing downtime.
• Vibration damping: With its elastomer insert, the EKL Size 20 effectively absorbs and dampens vibrations, promoting smooth and quiet operation.

Specifications:

• Type A elastomer: The coupling is equipped with a Type A elastomer insert, offering a shore hardness of 98 Sh D for excellent durability and flexibility.
• Temperature range: The elastomer insert has a wide temperature range of -30 °C to +100 °C.

Design and materials:

• Two concentrically machined hubs: The EKL Size 20 features two hubs with curved jaws that provide a secure and reliable connection.
• Clamping hub: Each hub is equipped with a clamping screw on each side, ensuring a tight and rigid coupling assembly.
• High-strength aluminum hubs: The hubs are constructed from high-strength aluminum, providing durability and corrosion resistance.
• Wear-resistant thermally stable TPU elastomer: The elastomer insert is made from a wear-resistant thermoplastic polyurethane (TPU) material, ensuring long-lasting performance.

Bore specifications:

• Bore D1: Ø15mm H7
• Bore D2: Ø19mm H7
