Features:

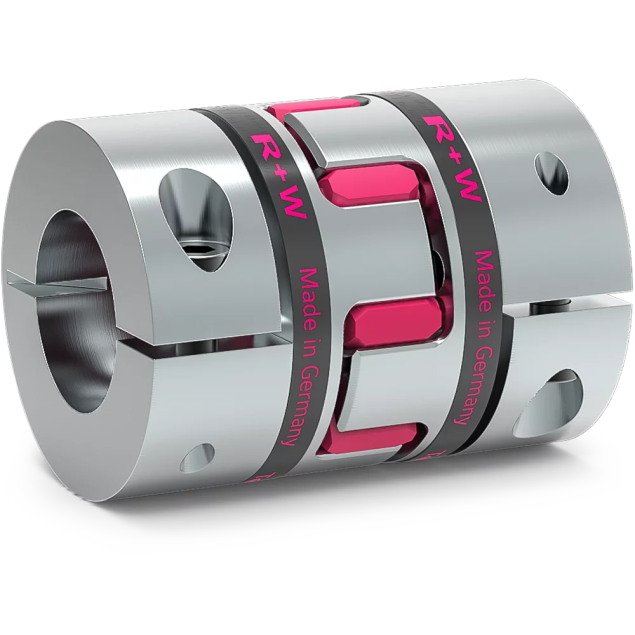

• Easy mounting: The EK2 size 20 coupling is designed for quick and hassle-free installation, saving you valuable time and effort.
• High concentricity: The coupling ensures precise alignment between the connected shafts, minimizing misalignment and reducing wear on the system.
• Vibration damping: With its advanced elastomer material, the coupling effectively absorbs and dampens vibrations, promoting smooth operation and extending the lifespan of your equipment.

Specifications:

• Type A elastomer: The coupling is equipped with a type A elastomer insert, boasting a shore hardness of 98 Sh D, ensuring optimal flexibility and durability.
• Temperature range: The elastomer insert can withstand temperatures ranging from -30 °C to +100 °C, making it suitable for various operating conditions.
• Two concentrically machined hubs: The coupling features two hubs with curved jaws, designed to enhance grip and transmit torque efficiently.
• Clamping ccrew: Each hub is equipped with a clamping screw for secure and reliable connection.

Materials:

• High-strength aluminum hubs: The hubs are constructed from high-strength aluminum, providing robustness and resistance to wear.
• Wear-resistant TPU elastomer insert: The elastomer insert is made from thermally stable TPU material, ensuring excellent wear resistance and longevity.

Bore specifications:

• Bore D1: Ø14mm H7
• Bore D2: Ø19mm H7
