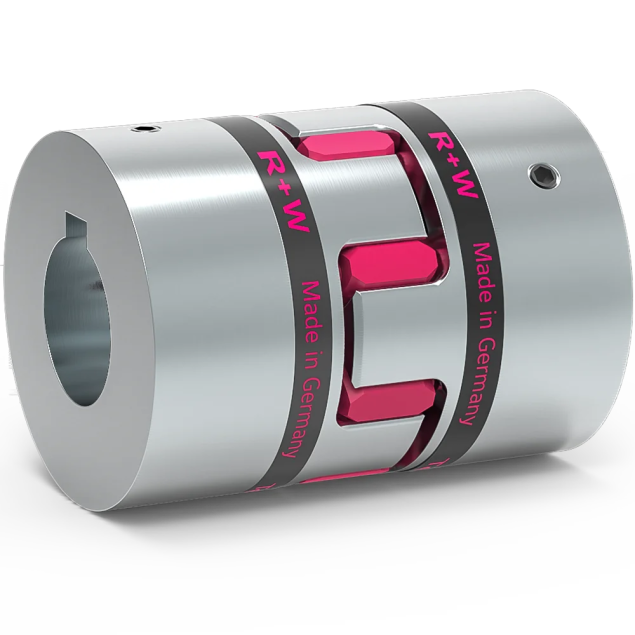

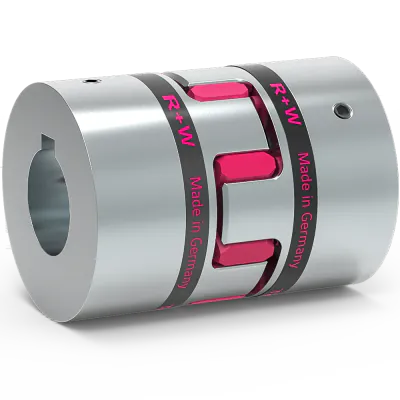

Key features:

• High concentricity: The EK1 size 60 coupling ensures concentricity, minimizing misalignment issues and maximizing transmission efficiency.
• Low backlash: With its advanced elastomer technology, this coupling provides minimal backlash, resulting in smooth and precise power transmission.
• Type elastomer: Equipped with a Type A elastomer, this coupling offers a shore hardness of 98 Sh D, ensuring excellent flexibility and durability.
• Wide temperature range: The elastomer insert is capable of withstanding temperatures ranging from -30 °C to +100 °C, making it suitable for diverse operating environments.

Design and materials:

• Two concentrically machined hubs: The coupling features two meticulously machined hubs with curved jaws, keyways, and set screws, providing a secure and reliable connection.
• High-strength aluminum hubs: The hubs are constructed from high-strength aluminum, offering exceptional strength, durability, and corrosion resistance.
• Wear-resistant TPU elastomer: The elastomer insert is made from a wear-resistant and thermally stable TPU material, ensuring long-lasting performance and reliable power transmission.

Specifications:

• Bore D1: Ø20mm H7
• Bore D2: Ø15mm H7
• Keyway: DIN 6885
• Set screw: DIN 916
