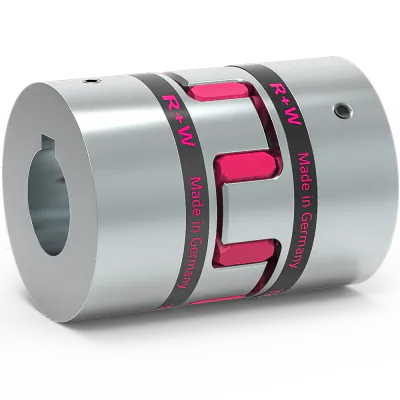

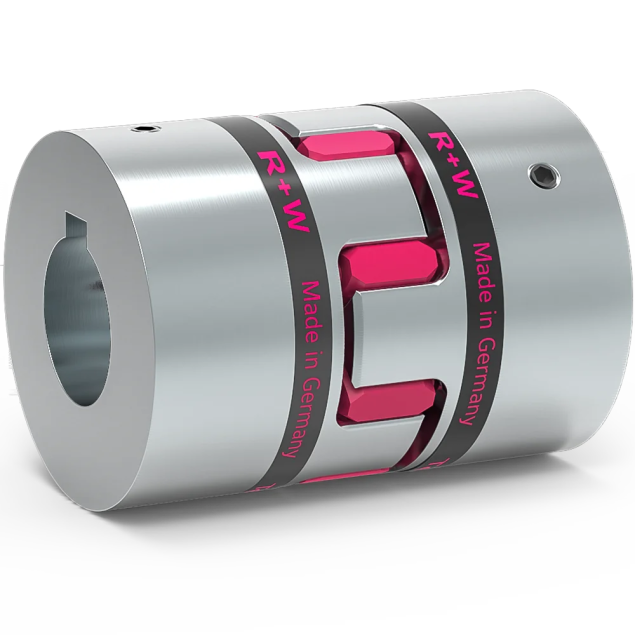

R+W EK1 20 A 15 10 elastomer coupling, aluminium and TPU
HV3020010191The EK1 size 20 elastomer coupling with simple keyway design, is a high-quality coupling designed for precise power transmission in various applications. With its features and durable construction, it offers reliable performance and long-lasting functionality.
Made to order
Expected shipment: 22-04-2025
More Information
Description

Key features:
- High concentricity: The EK1 coupling ensures accurate alignment between the driving and driven shafts, minimizing misalignment-related issues.
- Low backlash (Keyway): The simple keyway design reduces backlash, providing improved responsiveness and efficient power transmission.
Specifications:
- Elastomer type: Type A elastomer with a shore hardness of 98 Sh D.
- Temperature range: The coupling can operate in temperatures ranging from -30 °C to +100 °C.
Design and materials:
- Two concentrically machined hubs: The coupling features two hubs machined with precision to ensure optimal concentricity and smooth operation.
- Curved jaws and keyways: The curved jaws enhance flexibility and minimize stress concentrations, while the keyways securely transmit torque between the hubs.
- Set screws: The coupling includes set screws to provide additional stability and prevent slippage during operation.
- High-strength aluminum hubs: The hubs are constructed from high-strength aluminum, ensuring durability and resistance to wear.
- Wear-resistant thermally stable TPU elastomer insert: The elastomer insert is made from a wear-resistant thermoplastic polyurethane (TPU) material, offering longevity and stability.
Bore specifications:
- Bore D1: Ø15mm H7
- Bore D2: Ø10mm H7
- Keyway: DIN 6885
- Set screw: DIN 916
