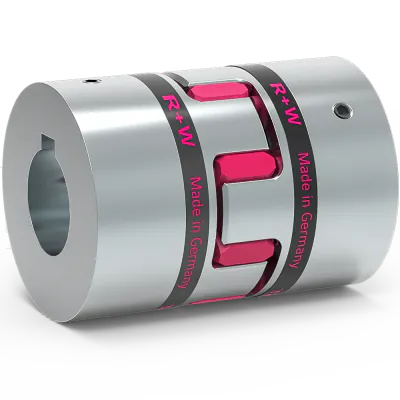

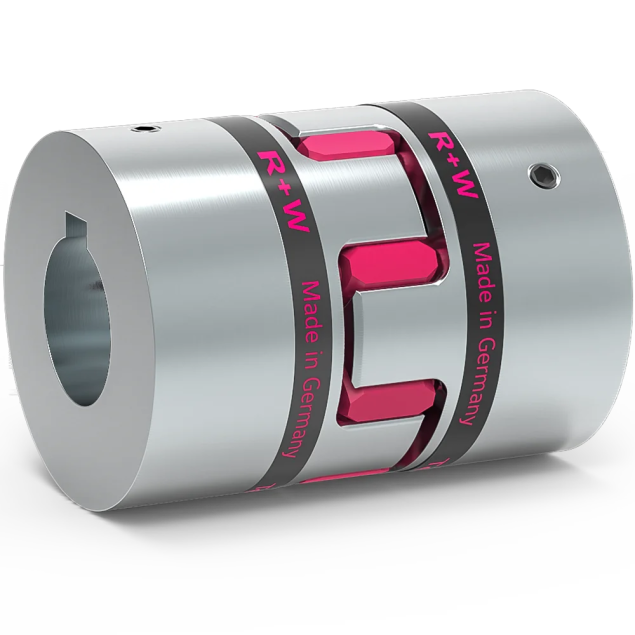

Key features:

• High concentricity: Ensures accurate alignment and minimizes radial and angular misalignment between the connected shafts.
• Low backlash (keyway): Provides precise torque transmission without unwanted play or movement.

Specifications:

• Type: Elastomer coupling with a simple keyway design
• Elastomer type: Type B
• Shore hardness: 64 Sh D
• Temperature range: -30 °C to +120 °C

Design and materials:

• Two concentrically machined hubs: Ensures optimal alignment and reduces vibration for smooth operation.
• Curved jaws and keyways: Enhances torque transmission capacity and eliminates slippage.
• Set screws: Facilitate secure fastening and reliable torque transmission.
• Hubs made from high-strength aluminum: Provides durability and resistance to wear and corrosion.
• Elastomer insert made from wear-resistant and thermally stable TPU: Ensures longevity and reliable performance under various operating conditions.

Bore specifications:

• Bore D1: Ø32mm H7
• Bore D2: Ø20mm H7
• Keyway: DIN 6885
• Set screw: DIN 916
