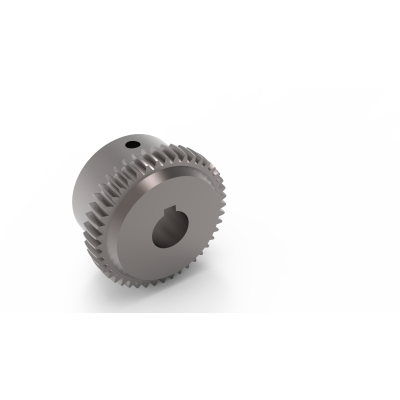

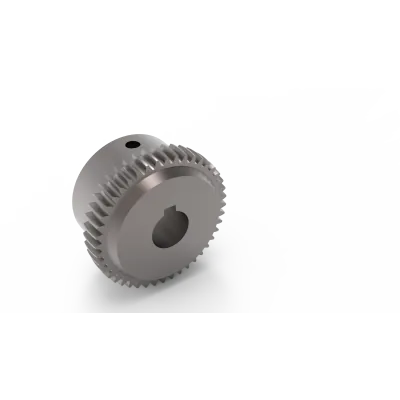

DENTEX gear tooth hub B55, steel
HV71004500DENTEX toothed coupling hub B55 is a flexible toothed coupling with 2 congruent hubs with crowned teeth, that transmits moment by engaging with the internal understanding of the housing. The coupling is suitable for both horizontal and vertical shaft connections, as well as for reversing and intermittent service. The coupling requires no maintenance and no lubrication is required.
Specifications
Product description
Downloads
€103.89
In stock
Expected shipment: 07-02-2025
More Information
Hub type
B
Material
Steel
Length (mm)
124
Max. moment (Nm)
500
Manufacturer
R+L HYDRAULICS
Coupling size
55
Bore max.
Ø55mm H7
Bore min.
Ø25mm H7
Description
Key features:
- Robust steel construction: Made from steel, the B55 hub ensures durability, longevity, and consistent performance even in rugged environments.
- Precision gear teeth: The exterior of each hub features precisely cut gear teeth, which seamlessly engage with mating gear teeth on the housing's interior diameter, ensuring efficient torque transmission and balance.
- Ideal torque transmission: The gear coupling design is optimized for high torque applications, making it suitable for scenarios where exceptional torque capacity is essential.
- Accommodates displacement: The gear teeth design allows for limited angular and parallel misalignment, accommodating displacement without compromising torque transmission.
- Temperature resilience: With a temperature range of -25 °C to +80 °C, the hub guarantees maximum reliability in a wide variety of operational environments.
- Enhanced heat performance: For elevated temperature conditions up to +140 °C, a heat-stabilized polyamide coupling sleeve complements the hub, ensuring consistent performance without compromising on reliability.
- Modular system: The B55 hub is an integral part of a modular coupling system. A complete clutch assembly comprises two hubs and one sleeve, providing a comprehensive coupling solution.
