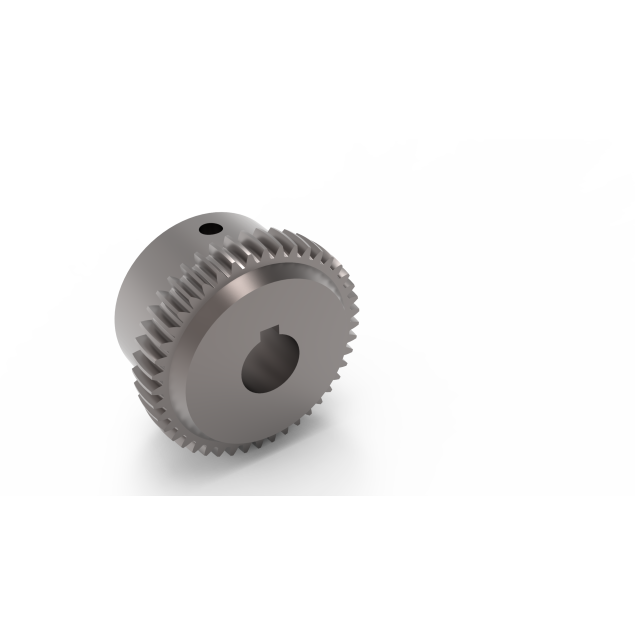

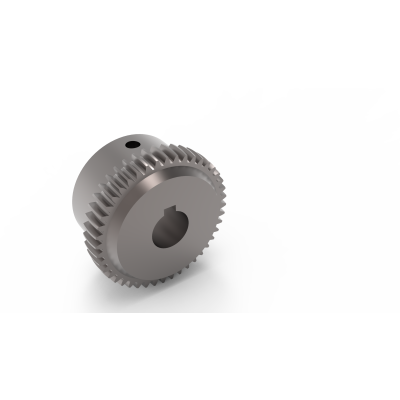

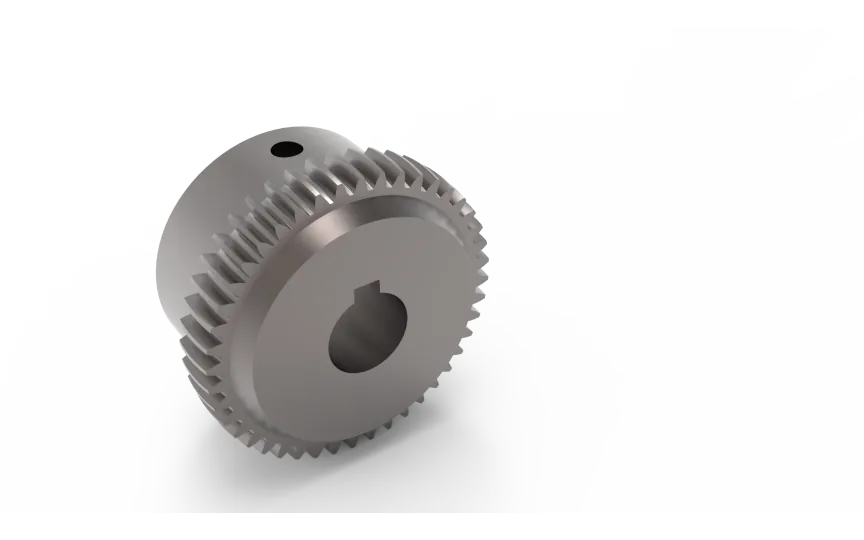

DENTEX gear tooth hub B38, steel
HV71004310The DENTEX gear tooth hub B38 is a robust and efficient hub designed for flexible gear couplings, crafted from high-quality steel to ensure durability and performance. Engineered to provide torque transmission and displacement accommodation, this hub is an essential component for applications demanding precision and reliability.
Specifications
Product description
Downloads
€62.06
Made to order
Expected shipment: 07-02-2025
More Information
Hub type
B
Material
Steel
Length (mm)
84
Max. moment (Nm)
160
Manufacturer
R+L HYDRAULICS
Coupling size
38
Bore max.
Ø38mm H7
Bore min.
Ø14mm H7
Description
Key features:
- High-quality material: Crafted from rugged steel, ensuring longevity and resistance to wear and tear.
- Optimal torque transmission: Perfect for applications requiring high torque and balance, offering unrivaled performance in demanding scenarios.
- Temperature resilience: Operating efficiently in a temperature range of -25°C to +80°C.
- Enhanced high-temperature variant: For temperatures up to +140°C, coupling sleeve in heat-stabilized polyamide is required, expanding application versatility.
- Modular design: Sold individually, each gear tooth hub forms an integral part of a complete clutch, which comprises 2 hubs and 1 sleeve.
- Reliable displacement accommodation: Effectively absorbs displacement through its gear teeth, enhancing mechanical flexibility and ensuring seamless operation.
