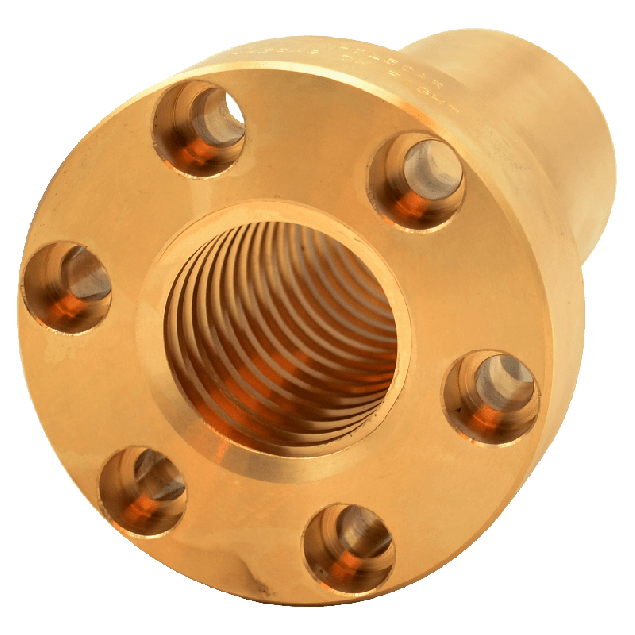

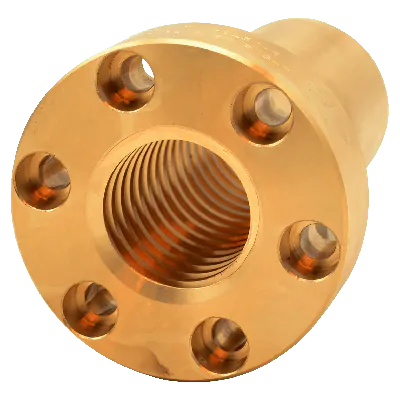

CONTI HDL Tr 50x8 trapezoidal nut with flange, right thread, bronze
KI600169The trapezoidal nut HDL Tr 50x8 from CONTI, is used to connect a threaded rod or screw to a linear motion system. The nut is made of steel and has a flange for easy mounting, and is a trusted choice for high-load and high-speed applications.
Specifications
Product description
Downloads
€390.00
In stock
Expected shipment: 24-02-2025
More Information
Flange size (mm)
Ø100
Material
Bronze
Lenght (mm)
150
Type
HDL
Thread starts
1
Shape
Flanged
BCD (mm)
Ø80 - 6xØ10,5
Thread and metric
Tr 50 x 8
Description
Key features:
- Bronze nut with flange: The HDL Tr 50x8 nut is made of bronze (EN 1982 Cu Sn12-C – CC483K).
- Length (3 x d): The length of the nut, three times its diameter, makes it ideal for heavy loads and high speed, reducing wear and extending life.
- Flange design: The integrated flange with six holes ensures easy installation and solid mounting in various applications.
- Right thread: Fits standard systems for seamless integration.
