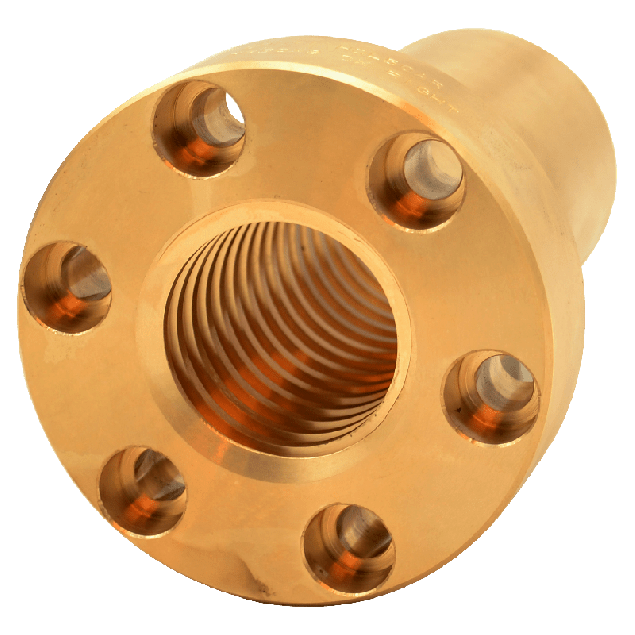

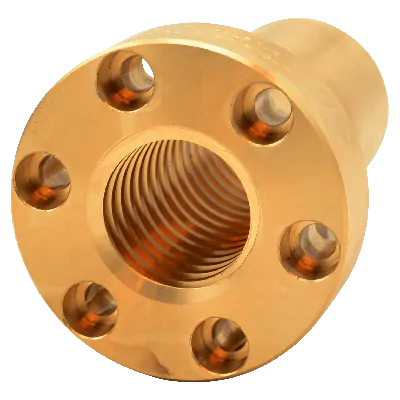

CONTI HDL Tr 50x10 trapezoidal nut with flange, right thread, bronze
KI600685The CONTI Trapezoidal Nut HDL Tr 50x10 with right thread, a engineering component designed to excel under demanding conditions. Crafted with precision and care, this trapezoidal nut boasts a set of key features that make it an essential choice for a wide range of applications.
Specifications
Product description
Downloads
€1,035.00
Made to order
Expected shipment: 14-03-2025
More Information
Flange size (mm)
Ø100
Material
Bronze
Lenght (mm)
150
Type
HDL
Thread starts
1
Shape
Flanged
BCD (mm)
Ø80 - 6xØ10,5
Thread and metric
Tr 50 x 10
Description
Key features:
- Flanged bronze nut: The HDL Tr 50x10 is constructed from a robust, flanged bronze nut that can withstand high loads and rapid movement speeds with ease.
- Optimal length ratio: The trapezoidal nut's length of 3 times the diameter (3 x d) minimizes wear and enhances its durability, ensuring long-lasting performance even in challenging environments.
- Interchangeable design: Thanks to its flange dimensions, the HDL Tr 50x10 nut is fully interchangeable with other CONTI products like FTN, HDL, HAL, and FCS (total length and flange thickness may vary).
- Six-hole flange: The HDL Tr 50x10 features a secure six-hole flange design.
- Recommended lubrication: To optimize its performance and extend its lifespan, we recommend regular and appropriate lubrication for this trapezoidal nut.
- Materials: HDL Tr 50x10 is composed of EN 1982 Cu Sn12-C – CC483K.
