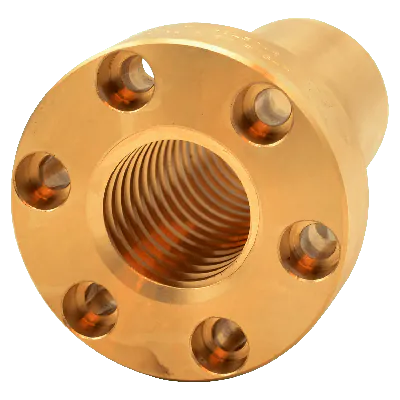

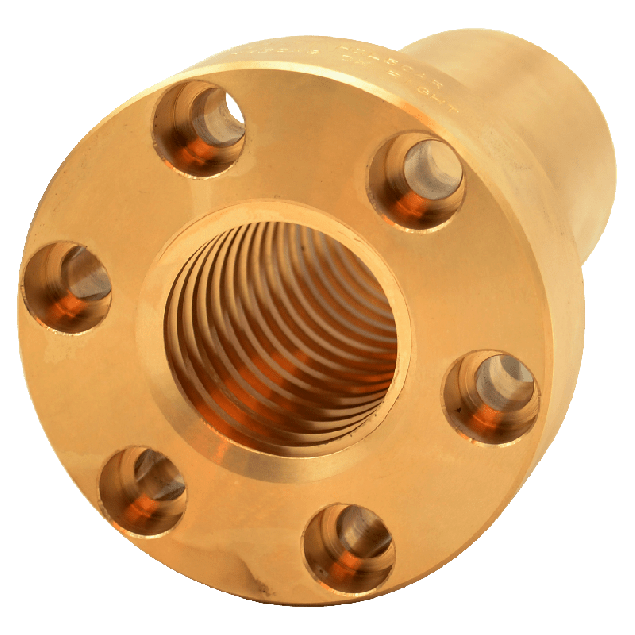

CONTI HDL Tr 25x25 trapezoidal nut with flange, right thread, bronze
KI600704The CONTI HDL Tr 25x25 trapezoidal nut is a heavy-duty solution from CONTI, an Italian manufacturer renowned for high-precision linear drive components. This flanged nut is crafted from durable bronze, specifically selected to provide exceptional wear resistance, strength, and low friction, even under demanding cyclic loads.
Designed with a Tr 25 x 25 right-hand thread and 5 thread starts, it ensures rapid linear advancement with fewer rotations, increasing system efficiency in applications requiring fast positioning or long strokes. Its flanged design (Ø62 mm flange, BCD Ø48 – 6xØ6.5) provides secure mounting, stabilizing the nut under axial loads and simplifying integration into lifting or positioning mechanisms.
At 75 mm in length, it offers a robust engagement length for high-load applications, minimizing backlash and delivering consistent, reliable performance. Manufactured to strict CONTI standards in Italy, this HDL flange nut is ideal for large screw jacks, heavy actuators, and industrial machinery that demand long service life and precision linear motion.
Made to order
Expected shipment:
More Information
Description
Key features:
- Flanged design: The HDL Tr 25x25 features a flanged bronze nut with a substantial length of 3 times the diameter (3 x d).
- Reduced wear: The special length of 3 x d significantly reduces wear, extending the product's lifespan and minimizing maintenance requirements.
- Interchangeability: The flange dimensions of this nut make it fully interchangeable with other CONTI products like FTN, HDL, HAL, and FCS, with only minor changes in total length and flange thickness.
- Six-hole flange: The HDL Tr 25x25 features a flanged nut with six holes, enhancing its stability and ease of installation.
- Material durability: Crafted from a chemical composition of materials that meet EN 1982 Cu Sn12-C – CC483K standards.
