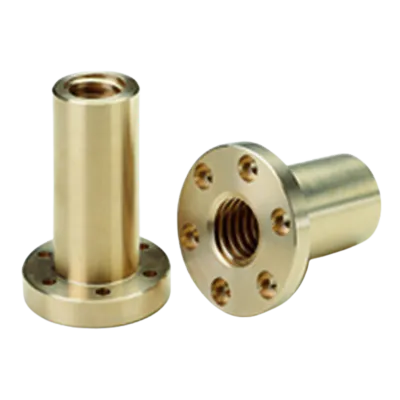

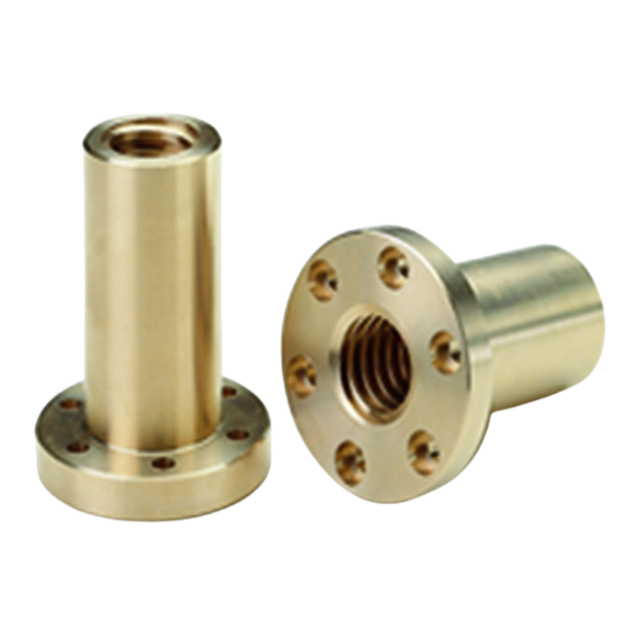

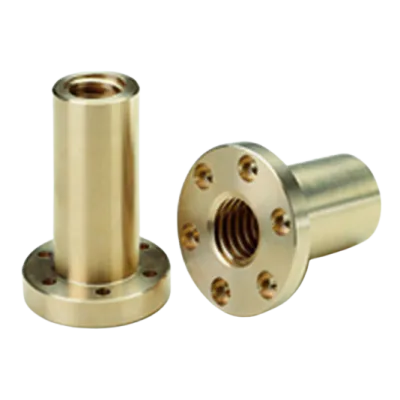

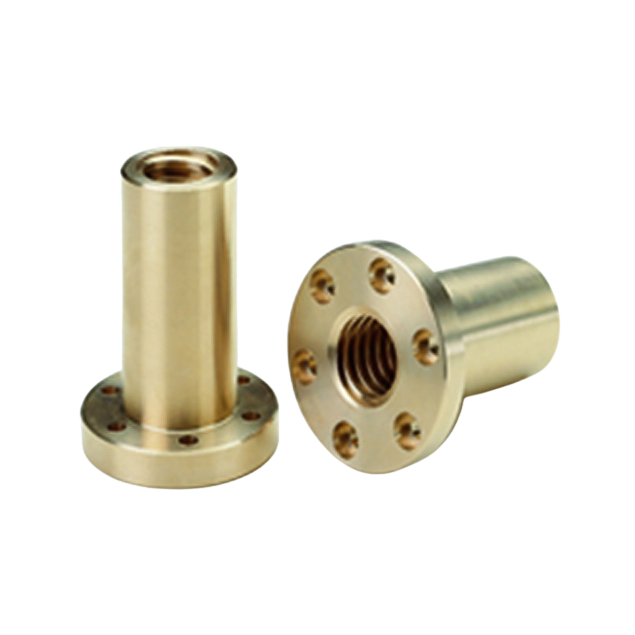

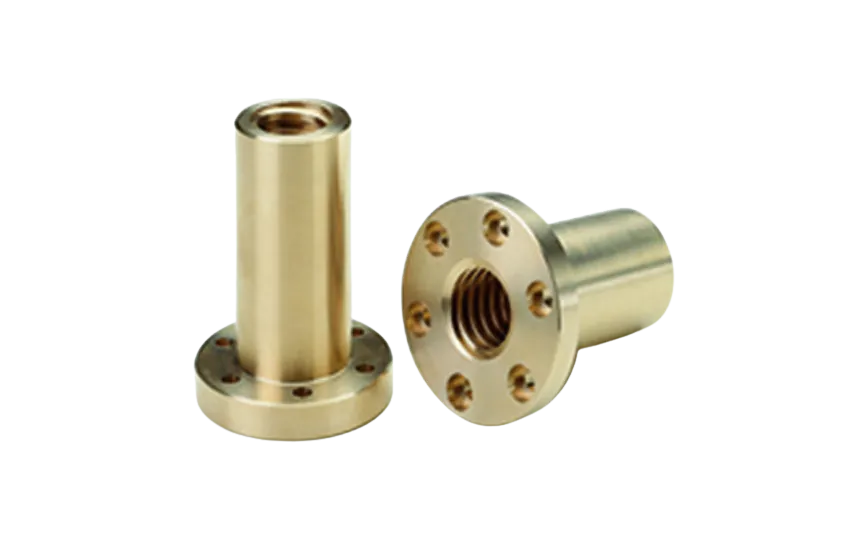

CONTI HAL Tr 50x8 trapezoidal nut with flange, right thread, aluminum bronze
KI600850The CONTI HAL Tr 50x8 cylindrical trapezoidal nut, is a solution for heavy-load applications requiring durability and reliability. Crafted from aluminum bronze, this trapezoidal nut boasts a right thread and a host of remarkable features .
Specifications
Product description
Downloads
€512.00
Made to order
Expected shipment: 05-04-2025
More Information
Flange size (mm)
Ø100
Material
Aluminum bronze
Lenght (mm)
150
Type
HAL
Thread starts
1
Shape
Flanged
BCD (mm)
Ø80 - 6xØ10,5
Thread and metric
Tr 50 x 8
Description
Key features:
- Durability: The HAL Tr 50x8 is designed to endure heavy loads, thanks to the hardness of aluminum bronze (EN 1982 CuAl11Fe6Ni6-C – CC333G).
- Reduced wear: The 3xTr length configuration of this nut significantly minimizes wear and tear.
- Interchangeable design: The dimensions of the flange are fully interchangeable with popular nut models like FTN, FXN, HDL, and FCS. This allows for seamless integration into your existing systems.
- Smooth operation: Generous and continuous lubrication is recommended during use.
