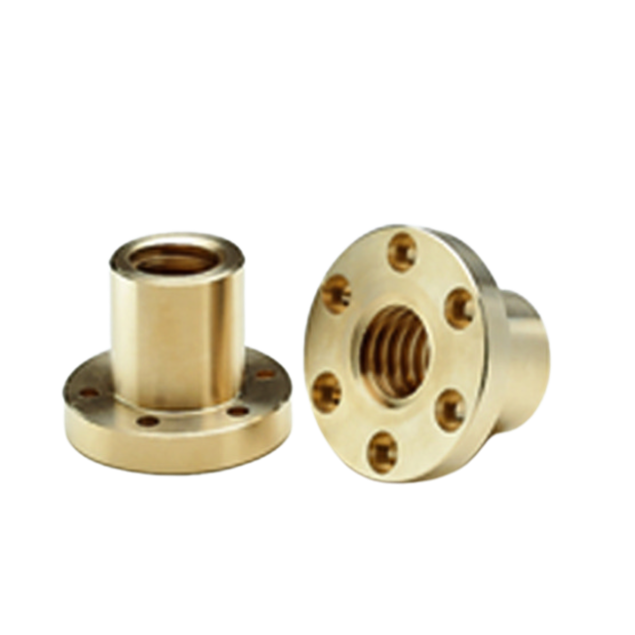

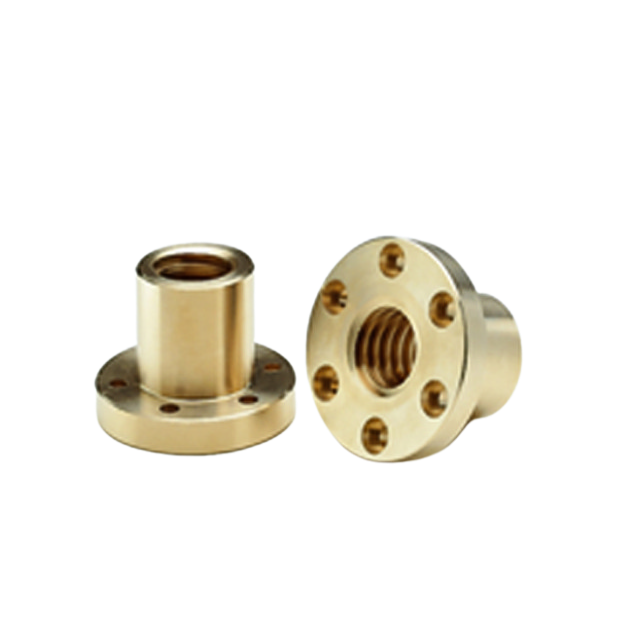

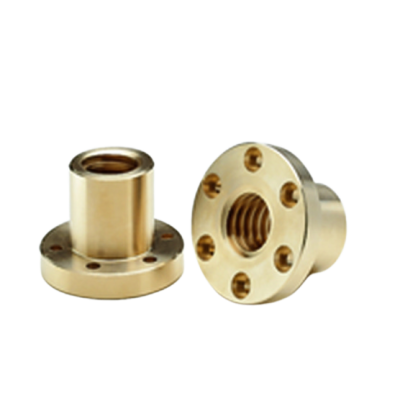

CONTI FXN Tr 25x25 trapezoidal nut with flange, right thread, bronze
KI600710The CONTI trapezoidal nut FXN Tr 25x25 with right thread, is a ideal solution for precision linear motion applications. Crafted with precision and engineered for longevity, this trapezoidal nut boasts remarkable features that ensure optimal performance and durability.
Specifications
Product description
Downloads
€217.00
Made to order
Expected shipment: 10-03-2025
More Information
Flange size (mm)
Ø62
Material
Bronze
Lenght (mm)
45
Type
FXN
Thread starts
5
Shape
Flanged
BCD (mm)
Ø48 - 6xØ6,5
Thread and metric
Tr 25 x 25
Description
Key features:
- Tin bronze construction: The FXN Tr 25x25 nut is manufactured from Cu Sn12-C UNI EN 1982 - CC483K tin bronze.
- Optimal lubrication: To maximize the nut's service life and efficiency, we recommend regular and adequate lubrication. This ensures smooth and reliable motion, reducing friction and wear.
- Interchangeability: Thanks to its flange dimensions, the FXN Tr 25x25 nut is fully interchangeable with several other CONTI products, including FTN, HDL, HAL, and FCS.
- Six holes: Equipped with six holes, this trapezoidal nut offers versatility and ease of installation.
- Material: Crafted from EN 1982 Cu Sn12-C – CC483K.
