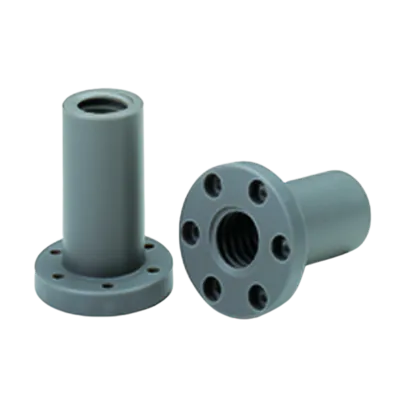

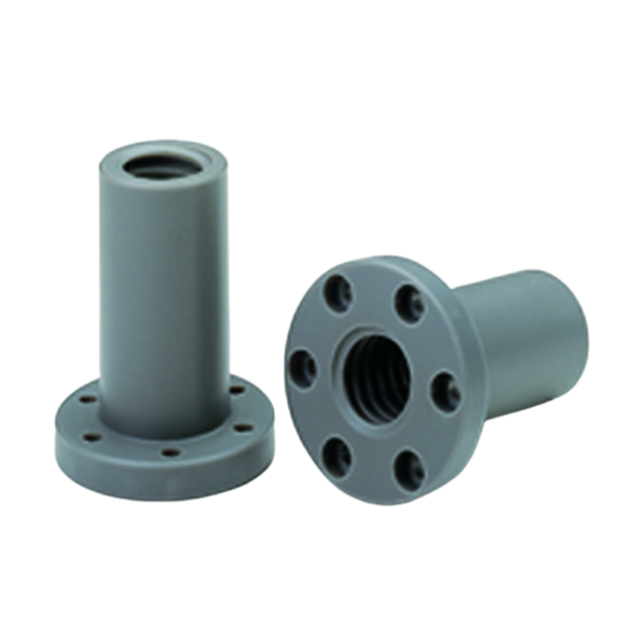

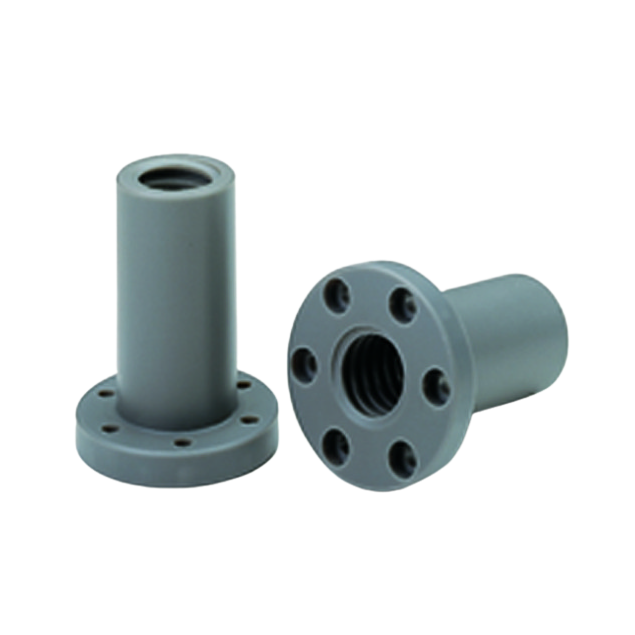

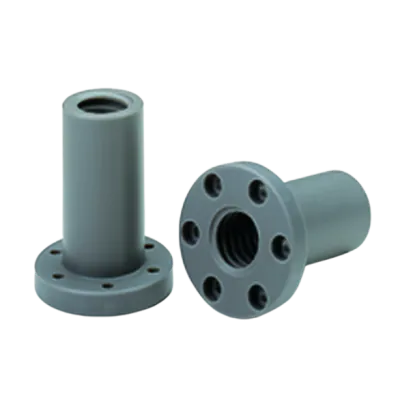

CONTI FCS Tr 40x7 trapezoidal nut with flange, left thread, plastic
KI600721The CONTI FCS Tr 40x7 cylindrical self-lubricating nut, is engineering for your industrial needs. Crafted from robust and long-lasting plastic materials, this left-threaded trapezoidal nut is designed to excel in even demanding environments.
Specifications
Product description
Downloads
€162.00
Made to order
Expected shipment: 15-03-2025
More Information
Flange size (mm)
Ø84
Material
Plastic
Lenght (mm)
120
Type
FCS
Thread starts
1
Shape
Flanged
BCD (mm)
Ø68 - 6xØ8,5
Thread and metric
Tr 40 x 7
Description
Key features:
- Self-lubricating: Engineered from a blend of materials including PA 6, Mo S2 DIN 7728, and specialized additives, this nut is inherently self-lubricating. It eliminates the need for additional lubrication during its operational lifespan, reducing maintenance and downtime.
- Enhanced load distribution: With a 3x d (diameter) length, this nut ensures load distribution.
- Interchangeability: The FCS Tr 40x7 nut seamlessly integrates with other CONTI product lines, such as FTN, FXN, HDL, and HAL.
- Wear-resistant plastic: Crafted from a wear-resistant plastic.
