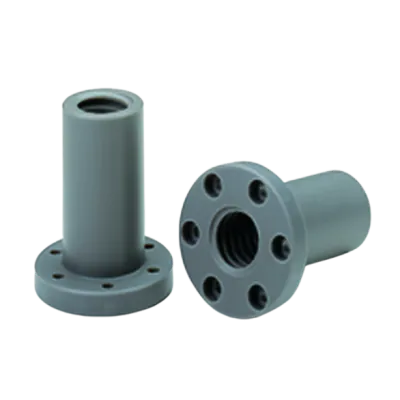

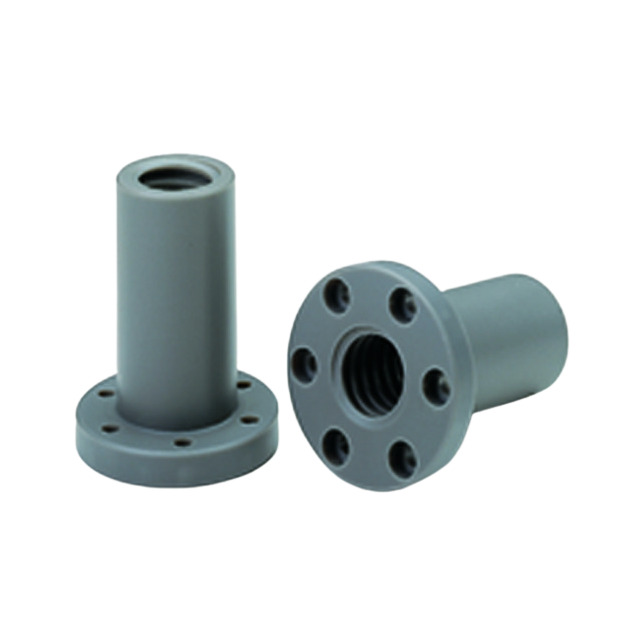

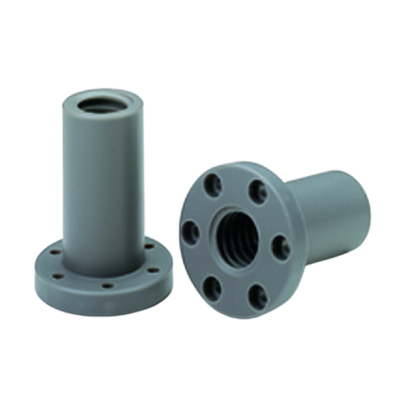

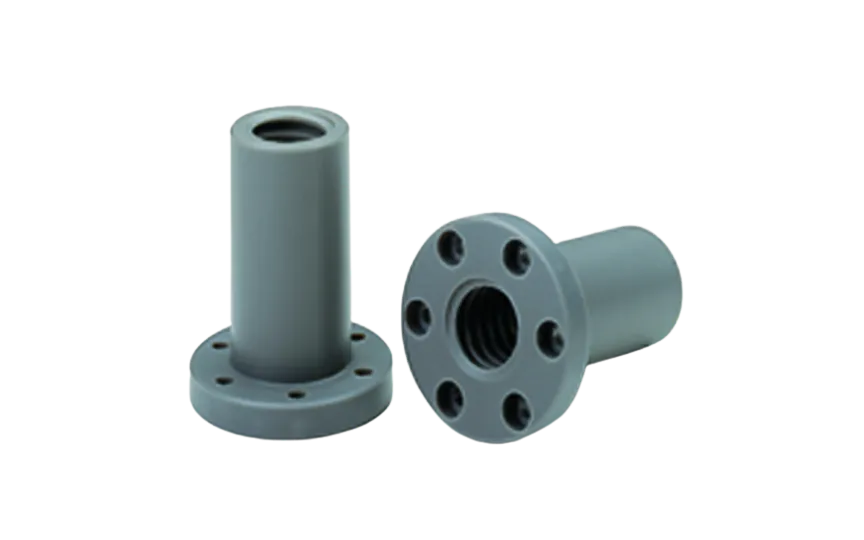

CONTI FCS Tr 20x8 trapezoidal nut with flange, right thread, plastic
KI600709The CONTI FCS Tr 20x8 is a cylindrical trapezoidal self-lubricating nut. This nut is designed to work well in many different situations, without needing any extra lubrication. It has some great features that make it stand out from other nuts, such as its high precision and performance.
Specifications
Product description
Downloads
€78.28
Made to order
Expected shipment: 07-02-2025
More Information
Flange size (mm)
Ø52
Material
Plastic
Lenght (mm)
60
Type
FCS
Thread starts
2
Shape
Flanged
BCD (mm)
Ø40 - 4xØ5,5
Thread and metric
Tr 20 x 8
Description
Key features:
- Materials: Crafted from a chemical composition of materials including PA 6 + Mo S2 DIN 7728.
- Self-lubricating: The FCS Tr 20x8 is inherently self-lubricating, reducing friction and wear over extended periods of use.
- Enhanced load distribution: With a 3 times diameter (3 x d) length, this nut offers load distribution, reducing stress on your machinery and extending the lifespan of your equipment.
- Interchangeability: Designed with precise flange dimensions, the FCS Tr 20x8 nut seamlessly integrates with other CONTI products like FTN, FXN, HDL, and HAL.
